Wheel Knuckle (G2296782): Installation

The following step(s) applies to:

All vehicles

1. CAUTION: This step requires the aid of another technician.
   NOTE: Do not fully tighten at this stage.
   • Install the wheel knuckle.
   • Install the new upper control arm to wheel knuckle nut and bolt.

     Renew Part: Rear upper arm to wheel knuckle nut and bolt Quantity: 1 .

   The following step(s) applies to:

   4WD vehicles

2. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

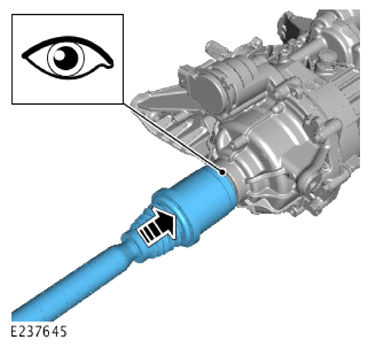

   Make sure the halfshaft is fully installed into the rear differential.

3. Install the halfshaft into the wheel knuckle.

   The following step(s) applies to:

   All vehicles

4. • Install and tighten the new lower control arm to wheel knuckle nut and bolt.

     Renew Part: Lower control arm nut and bolt Quantity: 1 .

     Torque

     Stage 1: 70 Nm

     Stage 2: 240°

5. • Tighten the upper control arm to wheel knuckle nut and bolt.

     Torque

     Stage 1: 40 Nm

     Stage 2: 180°

6. CAUTION: Torque must be applied to the bolt.
   • Reposition the tie-rod.
   • Install and tighten the new tie-rod to wheel knuckle nut and bolt.

     Renew Part: Tie-rod nut and bolt Quantity: 1 .

     Torque

     Stage 1: 60 Nm

     Stage 2: 180°

7. • Install the integral link.
   • Install and tighten the 2 new bolts and 2 new nuts.

     Renew Part: Integral link nuts and bolts Quantity: 2 .

     Torque

     Stage 1: 48 Nm

     Stage 2: 60°

8. • Reposition the stabilizer bar link into the correct position.
   • Install and tighten the new nut.

     Renew Part: Stabilizer bar link lower nut Quantity: 1 .

     Torque  : 70 Nm

9. • Install the accelerometer sensor.
   • Install and tighten the bolt.

     Torque  : 6 Nm

10. • Reposition the wheel speed sensor into the correct location.
    • Install and tighten the bolt.

      Torque  : 6 Nm

11. • Reposition the accelerometer sensor into the correct location.
    • Secure the wiring harness in the correct position.
    • Connect the electrical connector.
12. • Install the brake disc backplate.
    • Install and tighten the 3 bolts.

      Torque  : 10 Nm

13. Install the brake disc.

    Refer to: BRAKE DISC .

14. Install the shock absorber.

    Refer to: SHOCK ABSORBER .

    The following step(s) applies to:

    4WD vehicles

15. NOTE: This step requires the aid of another technician.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Apply and hold the footbrake.
    • Install and tighten the new halfshaft nut.

      Renew Part: Rear halfshaft nut Quantity: 1 .

      Torque

      Stage 1: 300 Nm

      Stage 2 Loosen: 90°

      Stage 3: 80 Nm

      Stage 4: 60°

    The following step(s) applies to:

    All vehicles

16. Install the wheel and tire.

    Refer to: WHEEL AND TIRE .

17. Use the Jaguar Land Rover approved equipment to check and if necessary adjust the rear wheel alignment. SRO must be claimed separately.

    Refer to: WHEEL ALIGNMENT (G2916251)

    General Equipment: Four wheel alignment equipment
