Spring (G2296779): Removal

CAUTION:

The suspension arm nuts and bolts must be tightened with the suspension arms in the normal ride position. Failure to follow this instruction may result in premature failure of the bush.
Do not remove the rubber isolators form the spring. A new spring is installed with the correct isolators.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Remove the rear shock absorber.
Refer to: SHOCK ABSORBER .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

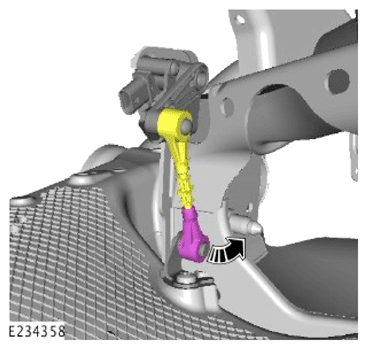

Disconnect the suspension height sensor link.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

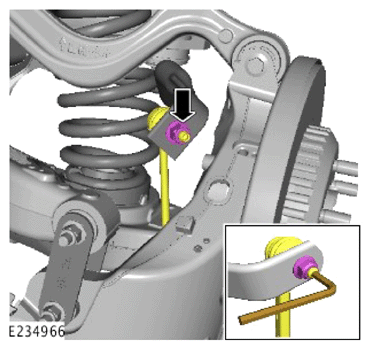

- Reposition the stabilizer bar link.
- Discard the nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

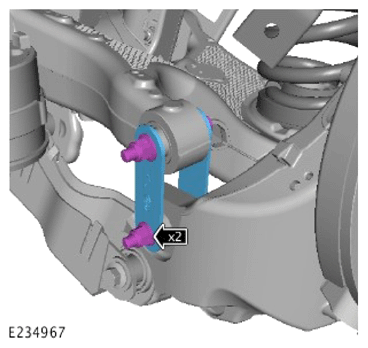

- Remove the integral link.
- Discard the nuts and bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

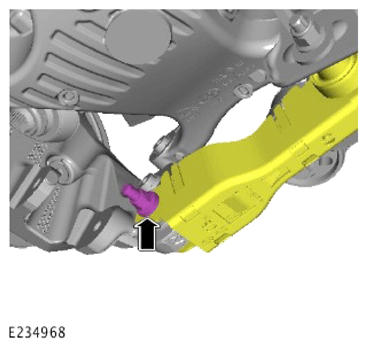

- Reposition the tie-rod.
- Discard the nut and bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

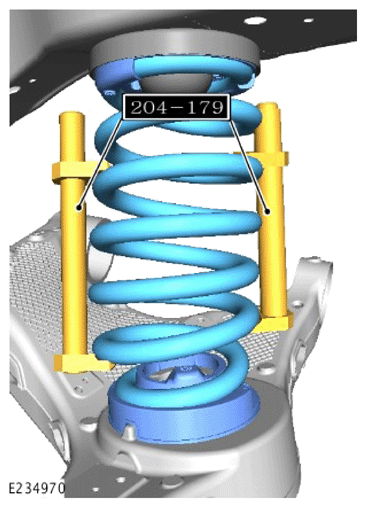

Using the special tools, compress the spring to aid removal.

Special Tool(s): 204-179
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

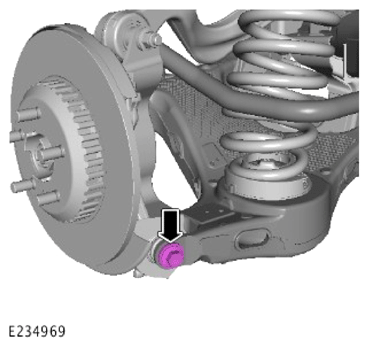

Remove and discard the lower control arm to wheel knuckle nut and bolt.
Remove the supporting stand from under the lower control arm.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

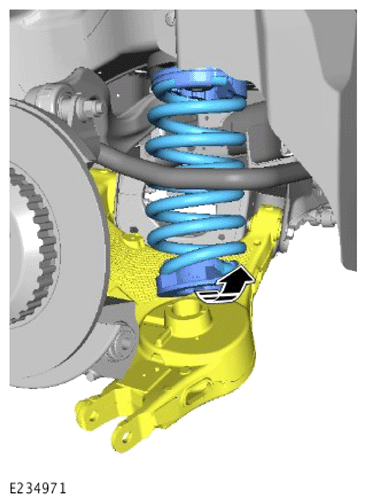

Remove the rear spring.
Remove the special tools.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

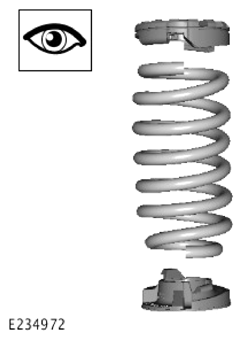

Inspect the components and replace if damaged or worn.
