Rear Stabilizer Bar (G2296776): Installation

- Install the stabilizer bar.
- Renew and tighten the 4 bolts.
  Renew Part: Rear stabilizer bar to subframe bolts Quantity: 4 .

  Torque : 70 Nm
- Reposition the upper control arm.
- Renew the 2 nuts and bolts.
  Renew Part: Upper control arm bolts Quantity: 2 .

  Renew Part: Upper control arm nut(s) Quantity: 2 .

  Torque

  Stage 1: 40 Nm

  Stage 2: 180°
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

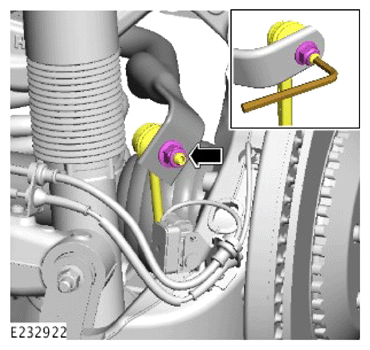

- Reposition the stabilizer bar link.
- Renew and tighten the 2 nuts.
  Renew Part: Stabilizer bar link retaining nut(s) Quantity: 2 .

  Torque : 60 Nm
Install the brake pads.
Refer to: BRAKE PADS .
Install the rear silencer
Refer to: REAR SILENCER .
