Rear SUBFRAME Bush (G2919874): Installation

CAUTION: Make sure that the component is correctly installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

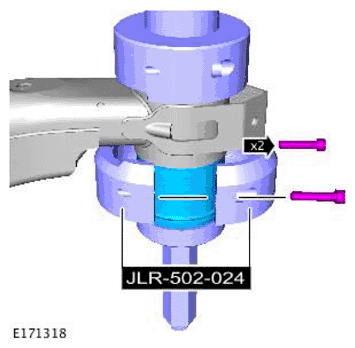

Install the special tool to the new the rear subframe bush.

Special Tool(s): JLR-502-024
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

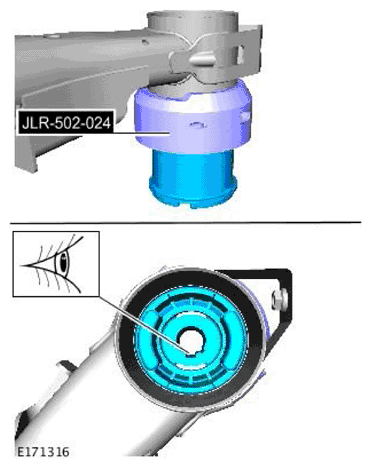

Make sure that the bush is installed to the position noted on removal.

Special Tool(s): JLR-502-024
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

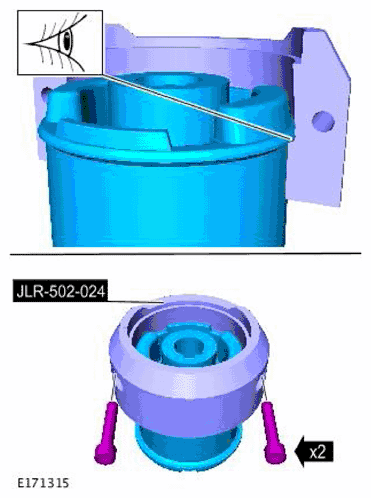

Using the special tools, install the rear subframe bush into the rear subframe.

Special Tool(s): JLR-502-022 , JLR-502-024 , JLR-502-025 , JLR-502-027-1 , JLR-502-027-2 , JLR-502-027-3
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

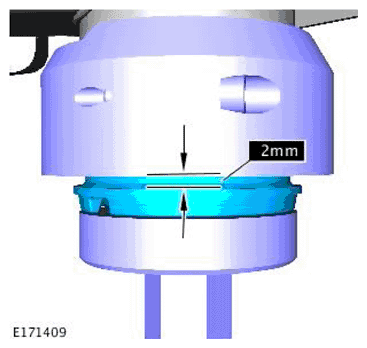

Leave a 2 mm gap between the lip of the bush and the tool.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

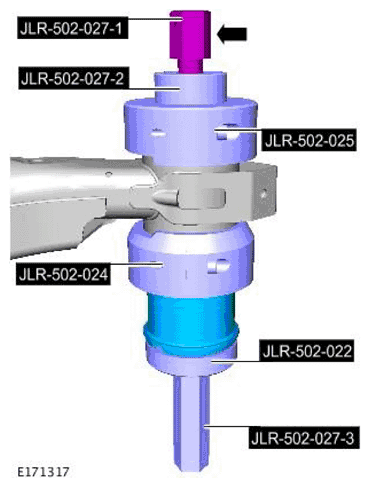

Remove the special tool from the rear subframe bush before it is fully installed.

Special Tool(s): JLR-502-024
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

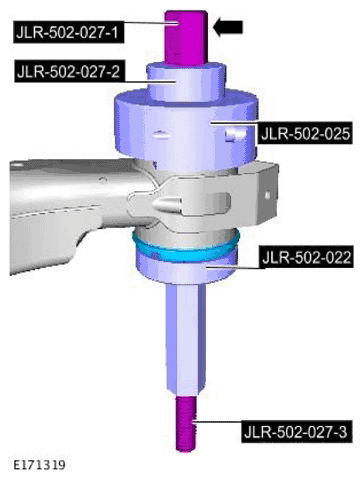

Continue to install the rear subframe bush.

Special Tool(s): JLR-502-022 , JLR-502-025 , JLR-502-027-1 , JLR-502-027-2 , JLR-502-027-3
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

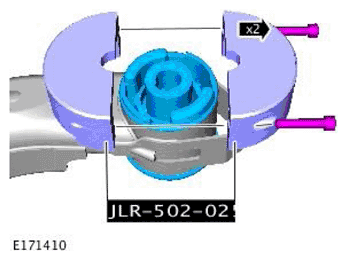

Remove the special tools.

Special Tool(s): JLR-502-025
Install the rear subframe.
Refer to: REAR SUBFRAME - [+] MHEV/[+] NON-ELECTRIC VEHICLES .
