Lower Control Arm (G2296775): Installation

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

If the lower control arm is to be used again, a new nut and bolt must be installed.

Renew Part: Lower control arm nut and bolt Quantity: 1 .

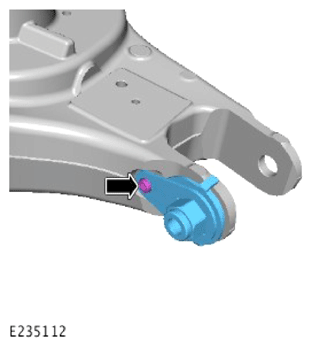

- Install the wiring harness and suspension height sensor link brackets.
  Torque : 6 Nm
- Install the lower control arm.
- Renew and tighten the 2 bolts.
  Renew Part: Lower control arm bolt(s) Quantity: 2 .

  Torque

  Stage 1: 70 Nm

  Stage 2: 240°
Secure the wiring harnesses.
Install the spring.
Refer to: SPRING .
