Upper Control Arm
NOTE:

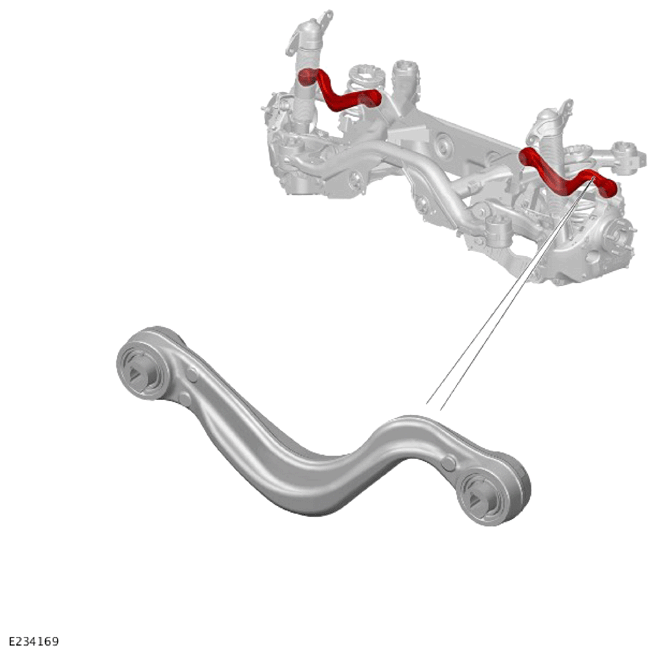

Left side component shown, right side component is similar.
The upper control arm is made from forged aluminum. Both ends of the upper control arm has a bush housing machined, a bush is pressed to each housing. The inner end locates in brackets on the upper section of the rear subframe. The outer end of the upper control arm is connected to lugs at the top of the wheel knuckle.
