Wheel Knuckle (G3260206): Installation

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

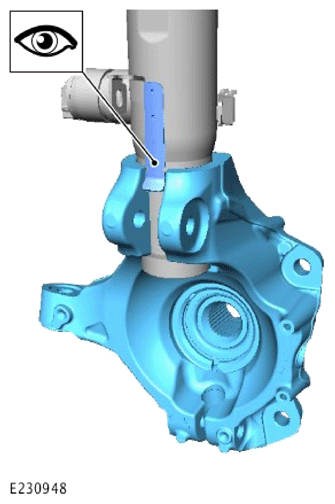

Install the wheel knuckle in the correct position.
Install and tighten the new shock absorber to wheel knuckle mounting nut and bolt.
Renew Part: Shock absorber to wheel knuckle mounting nut and bolt Quantity: 1 .

Torque

Stage 1: 80 Nm

Stage 2: 180°
Install the halfshaft into the wheel knuckle.
Install the front subframe.
Refer to: FRONT SUBFRAME .
- Install the wheel speed sensor.
- Install and tighten the bolt.
  Torque : 9 Nm
- Install the accelerometer sensor.
- Install and tighten the bolt.
  Torque : 9 Nm
- Connect the electrical connector.
- Install the brake cooling air duct.
- Install and tighten the 2 bolts.
  Torque : 10 Nm
- Install the brake disc backplate.
- Install and tighten the 3 bolts.
  Torque : 10 Nm
Install the brake disc.
Refer to: BRAKE DISC .
NOTE: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

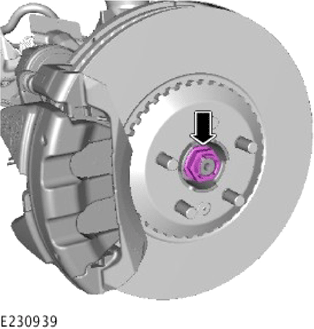

- Apply and hold the footbrake.
- Install and tighten the new halfshaft nut.
  Renew Part: Front halfshaft nut Quantity: 1 .

  Torque

  Stage 1: 300 Nm

  Stage 2: Loosen: 90°

  Stage 3: 80 Nm

  Stage 4: 60°
Install the front wheel and tire.
Refer to: WHEEL AND TIRE .
