Shock Absorber And Spring Assembly (G2296772): Removal

WARNING:

The spring is under extreme tension, care must be taken at all times. Failure to follow these instructions may result in personal injury.
The components may be heavy or awkward to handle. The assistance of another technician will be required.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Remove the engine compartment cross brace.
Refer to: ENGINE COMPARTMENT CROSS BRACE .
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Remove the wheel knuckle.
Refer to: WHEEL KNUCKLE .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

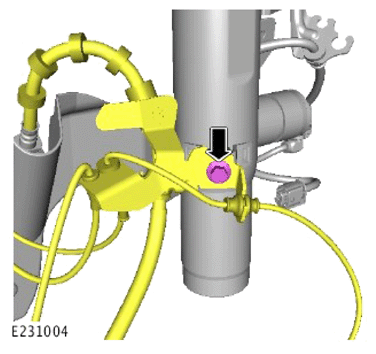

- Remove the bolt.
- Reposition the brake hose mounting bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

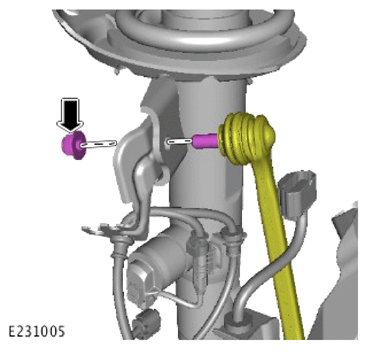

- Remove and discard the nut.
- Reposition the stabilizer bar link.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

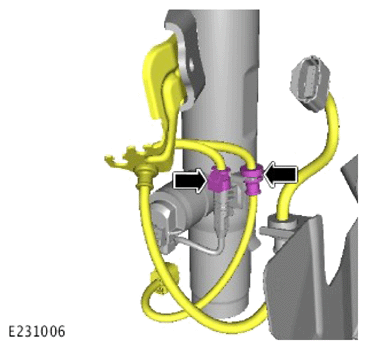

Disconnect and release the shock absorber wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

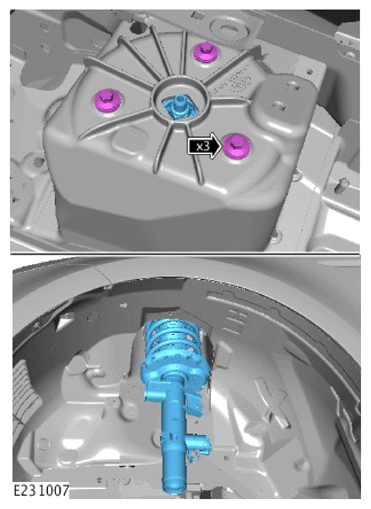

- Remove the 3 bolts.
- Remove the shock absorber and spring assembly from the vehicle.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Note the alignment of the bearing.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

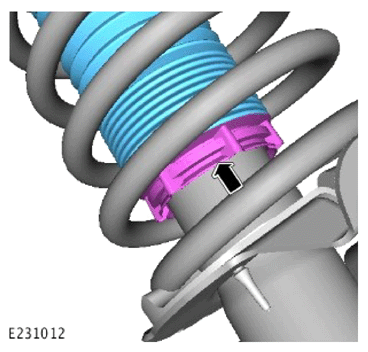

Note the alignment of the spring.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

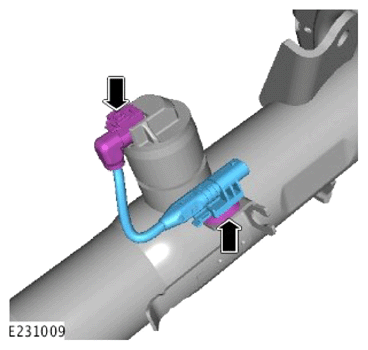

Remove the wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the shock absorber boot.
WARNING: Always follow the spring compressor manufacturer's instructions.

CAUTION: Take care not to damage the protective coating of the spring.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

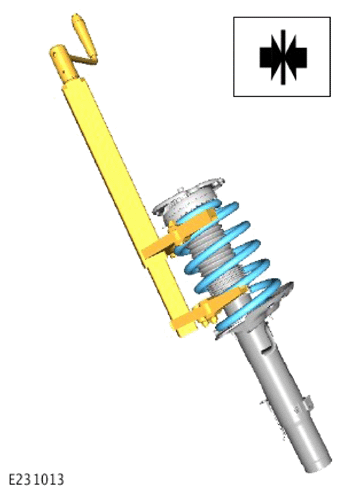

Using a suitable tool, compress the spring until the shock absorber is free from tension.

General Equipment: Suspension Spring Compressor
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

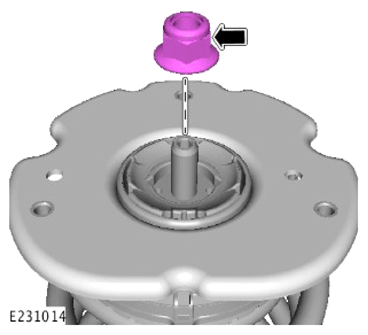

Remove and discard the nut from the top of the shock absorber.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

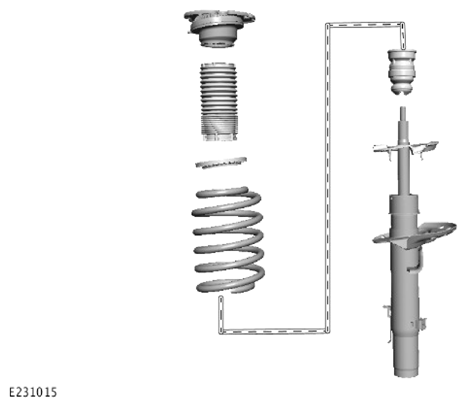

- Disassemble the shock absorber and spring assembly noting the order in which the components are removed.
- Inspect the components and renew if damaged or worn.
