Front Wheel Bearing (G2313269): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Remove the wheel knuckle.
Refer to: WHEEL KNUCKLE .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

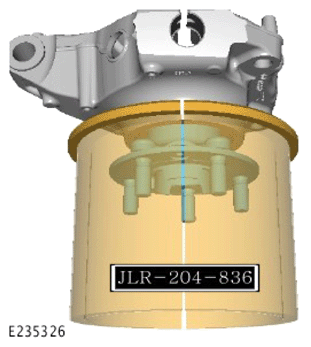

Install the special tools to the wheel knuckle.

Special Tool(s): JLR-204-836
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

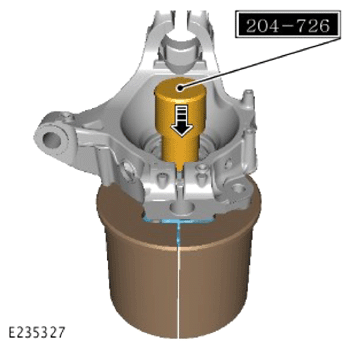

Use the special tools to remove the wheel hub.

Special Tool(s): 204-726

General Equipment: Hydraulic press
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Use a suitable tool to reposition the inner race of the wheel bearing to allow the special tool to be installed.

General Equipment: Punch
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

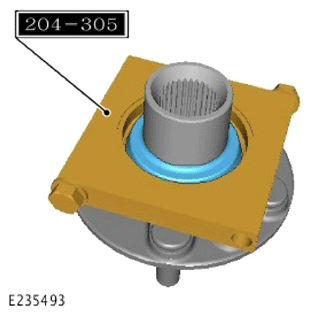

Use the special tool to remove the inner race of the wheel bearing.

Special Tool(s): 204-305

General Equipment: Hydraulic press
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

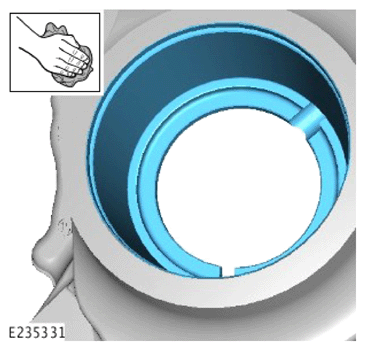

Clean and inspect the components.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the circlip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

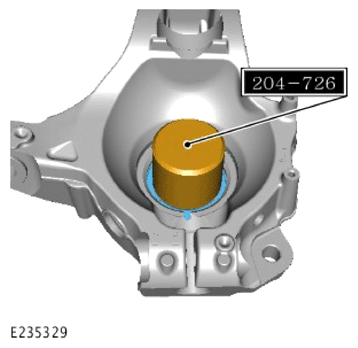

Use the special tool to remove the wheel bearing.

Special Tool(s): 204-726

General Equipment: Hydraulic press
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

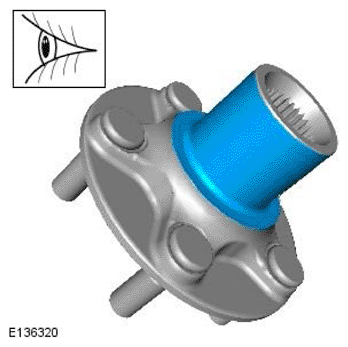

Clean and inspect the components.
