Front Wheel Bearing (G2313269): Installation

The following step(s) applies to:

Vehicles with All Wheel Drive (AWD)

1. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

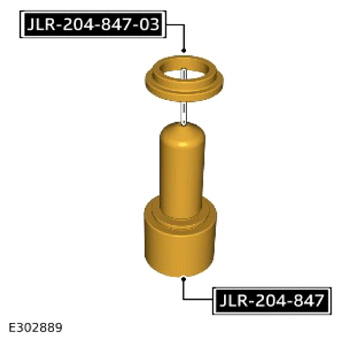

   Install the special tool JLR-204-847-03 adapter to the special tool JLR-204-847 front bearing support tool.

   Special Tool(s): JLR-204-847  , JLR-204-847-03

   The following step(s) applies to:

   All vehicles

2. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

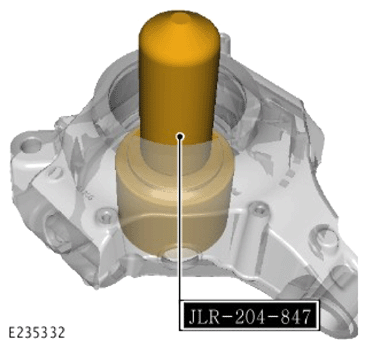

   Install the special tool to the wheel knuckle.

   Special Tool(s): JLR-204-847

3. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

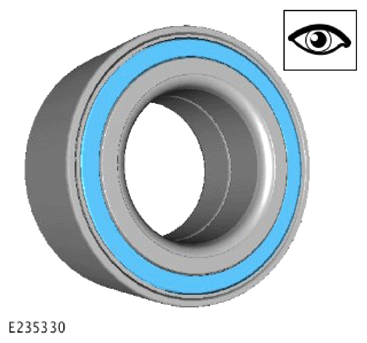

   Make sure the new wheel bearing is installed with the wheel speed sensor ring facing inward.

4. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

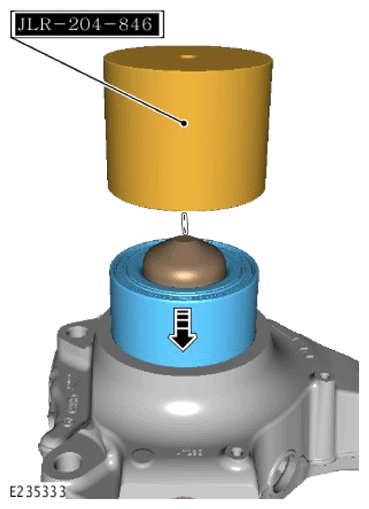

   Use the special tools to install the wheel bearing.

   Special Tool(s): JLR-204-846

   General Equipment: Hydraulic press

5. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

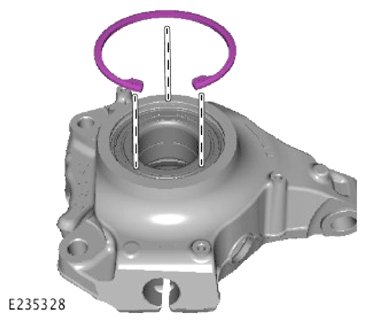

   Install the circlip with the gap towards the bottom the wheel knuckle.

6. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

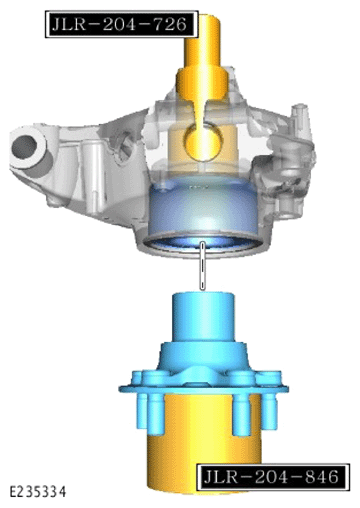

   Use the special tools to install the wheel hub.

   Special Tool(s): 204-726  , JLR-204-846

   General Equipment: Hydraulic press

7. Install the wheel knuckle.

   Refer to: WHEEL KNUCKLE  .
