Front Stabilizer Bar Link (G2296769): Removal
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
- Remove the wheel and tire.
Refer to: WHEEL AND TIRE .

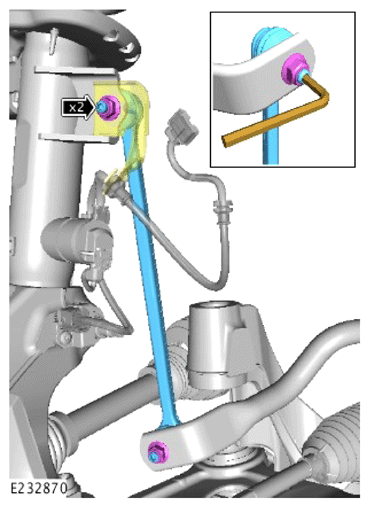

- Remove and discard the 2 nuts.
- Remove the stabilizer bar link.
