Front Stabilizer Bar (G2296768): Removal

NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Remove the front subframe.

    Refer to: the appropriate service information

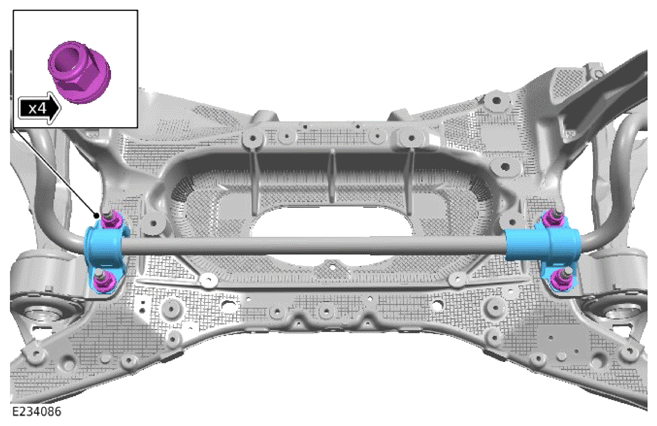

  2. G14422400Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove and discard the 4 nuts and bolts.
    • Remove the stabilizer bar mounting brackets.

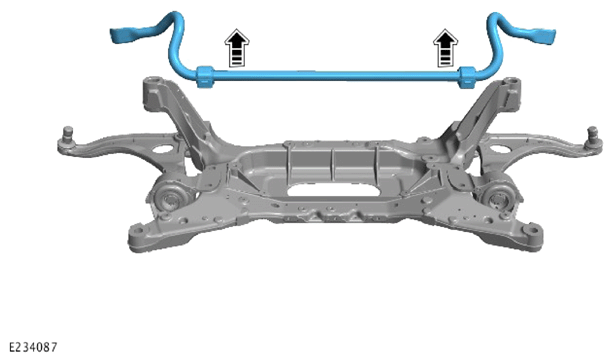

  3. G14422401Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the front stabilizer bar.
