Supplementary Restraint System (G2318702)

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM	LB-FT	LB-IN

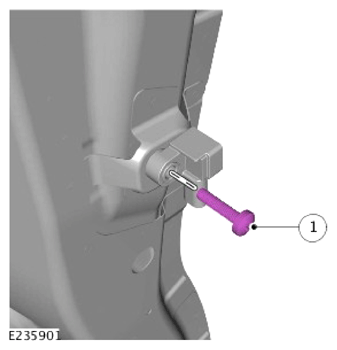

1	C-Pillar side impact sensor bolt	10	7	-

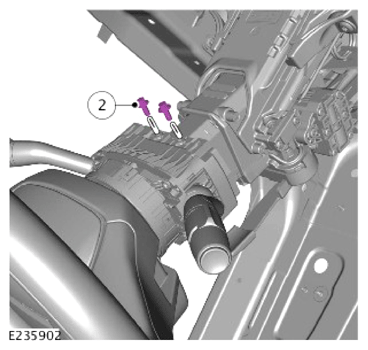

2	Clockspring bolts	1.9	-	16

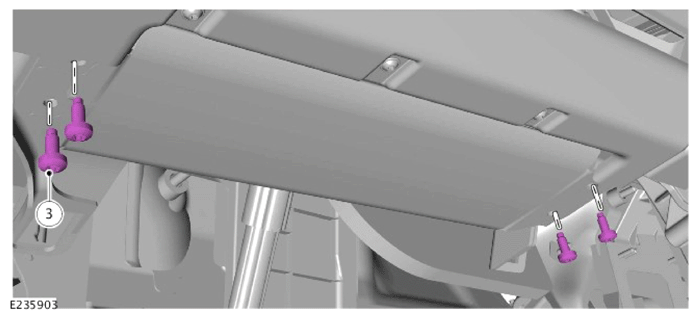

3	Driver lower air bag module bolts	10	7	-

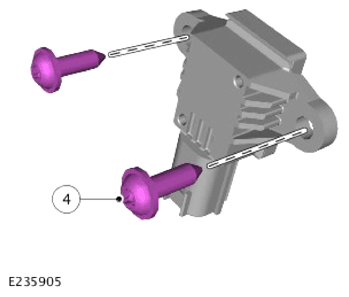

4	Impact pressure sensor screws	1, 9	-	17

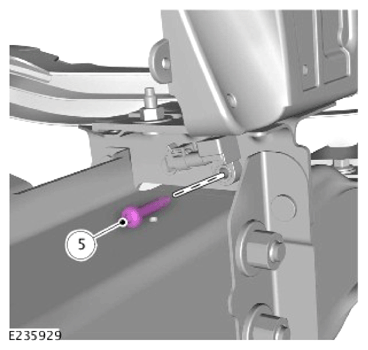

5	Front left impact sensor	10	7	-

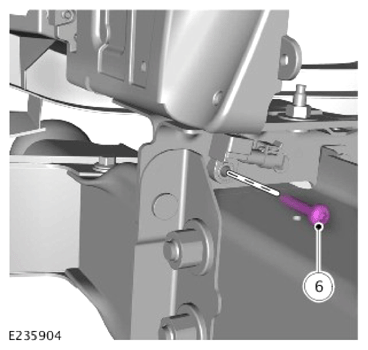

6	Front right impact sensor	10	7	-
7	Air Conditioning (A/C) pipe nut	9	-	79

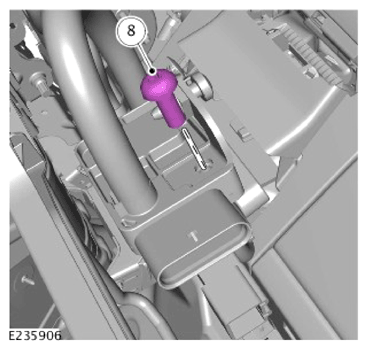

8	Occupant Classification Sensor Control Module (OCSCM) bolt	2	-	17

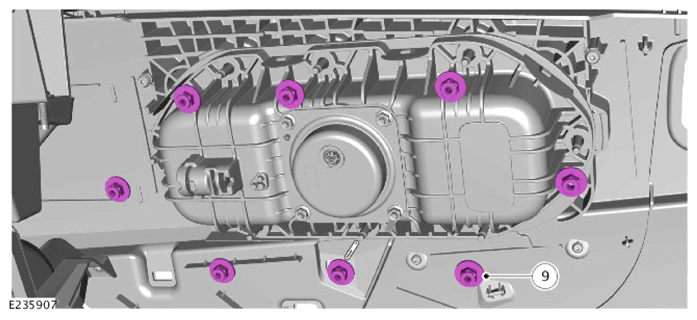

9	Passenger air bag nuts	6	-	53

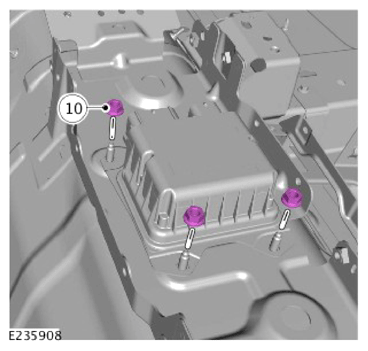

10	Restraints Control Module (RCM) nuts	10	7	-

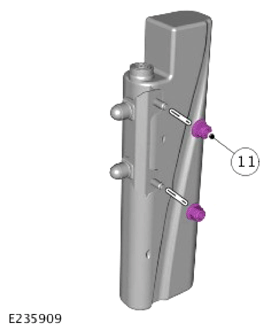

11	Side air bag nuts	7	-	61

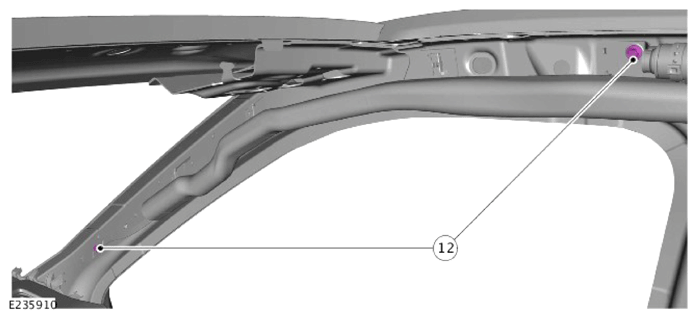

12	Side air curtain bolts	10	7	-

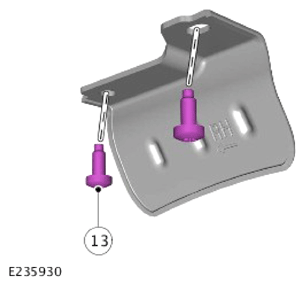

13	Side air curtain bracket bolts	10	7	-
