Driver Lower Airbag Module (G2305859): Removal

WARNING:

To avoid accidental deployment, the Restraints Control Module (RCM) backup power supply must be depleted. Wait at least 2 minutes after disconnecting the startup battery ground cable(s) before doing any repair or adjustment to the Supplementary Restraint System (SRS), or any component(s) adjacent to the SRS sensors. Failure to follow these instructions may result in personal injury.
Do not probe SRS electrical connectors.
The SRS electrical connectors are unique. DO NOT force, or attempt to connect electrical connectors to the wrong sockets.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Make the airbag SRS safe.
Refer to: SUPPLEMENTARY RESTRAINT SYSTEM HEALTH AND SAFETY PRECAUTIONS .
Disconnect the 12V system.
Refer to: 12V SYSTEM DISCONNECT .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

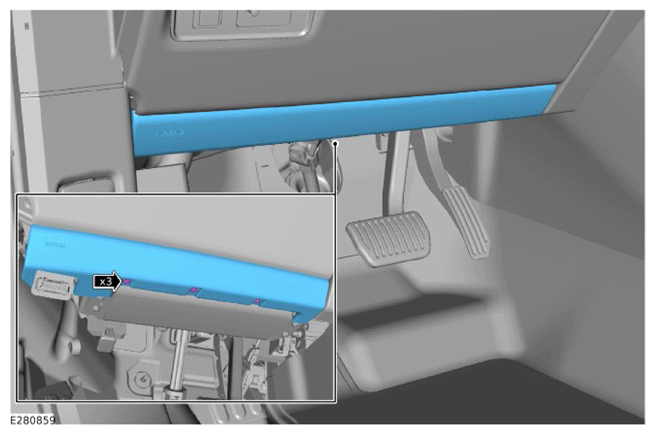

- Remove the 3 screws.
- Remove the trim.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

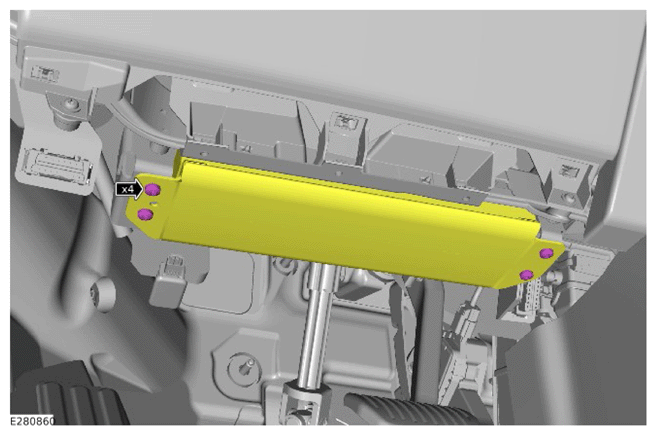

- Remove the 4 bolts.
- Release the driver lower airbag module.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

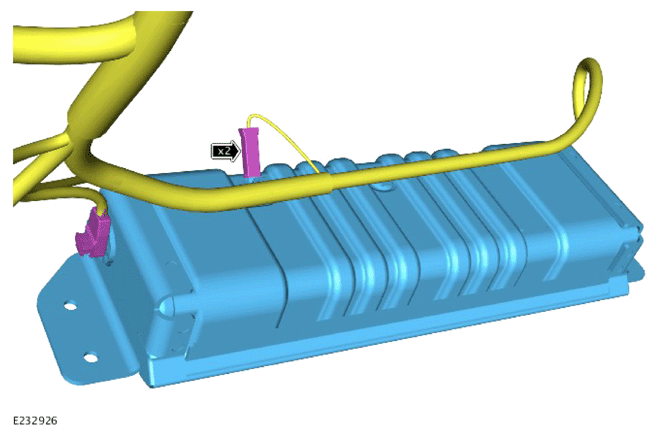

- Remove the 2 electrical connectors.
- Remove the driver lower airbag module.
