Side Airbags

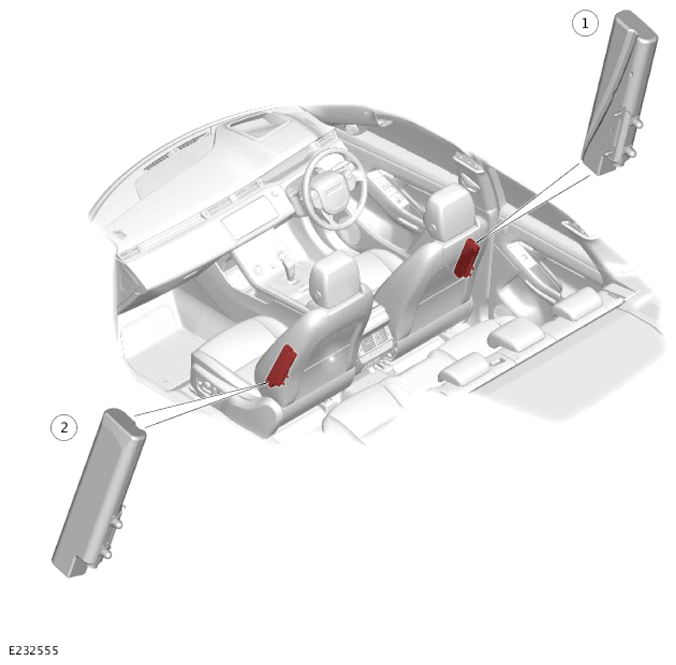

G14459145Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Driver side airbag
2 Passenger side airbag

The side airbags are attached to the outside of each front row seat backrest frame, under the seat backrest cover. They provide protection for the thorax, rib and pelvis when deployed during a side impact.

The side airbags are handed and each consists of a folded airbag and an inflator in a soft cover/wrapper. When the airbag deploys it fills within a deployment chute integrated into the seat trim, and splits open the airbag deployment seam in the seat backrest cover.
