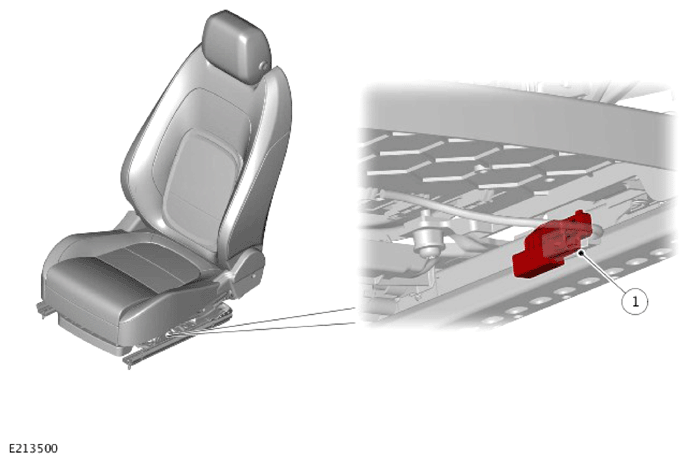

Seat Position Sensor

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The seat track position sensor is a 'Hall effect' type and is secured to the underside of the driver's seat. The sensor is actuated by the target bracket attached to the seat track. Electric signal is created when the target bracket passes the sensor creates an output signal for the Restraint Control Module (RCM). This indicates when the seat is forward of a defined point in its travel, the RCM disables the second stage output of the driver airbag.
