Passenger Airbag Deactivation Warning Indicator

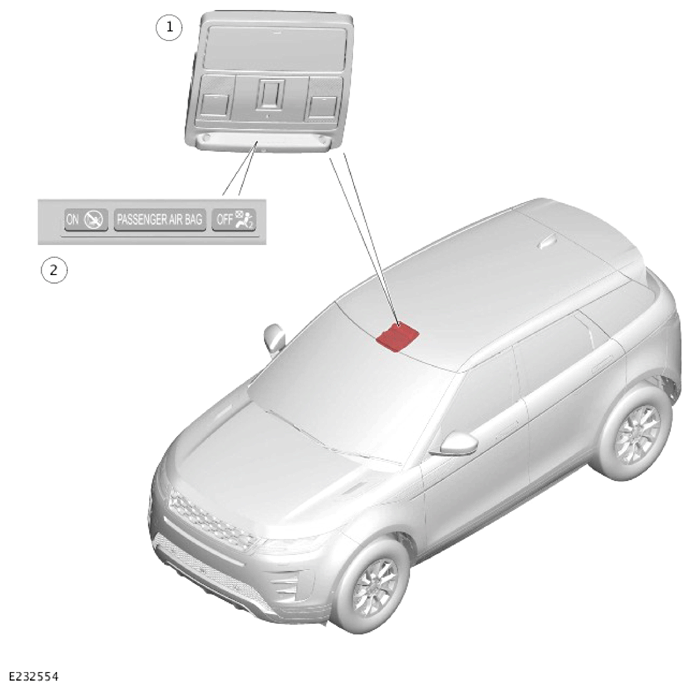

| ITEM | DESCRIPTION |
|---|---|
| 1 | Front overhead console |
| 2 | Passenger airbag deactivation warning indicator |
The passenger airbag deactivation warning indicator is installed in the front overhead console and has 2 states:
- Passenger airbag 'OFF'.
- Passenger airbag 'ON'.
Operation of the warning indicator is controlled by the Restraints Control Module (RCM).
The BCM/GWM illuminates the indicator when:
- There is a fault with the passenger airbag firing circuit(s).
- The passenger airbag is disabled in the Instrument Cluster (IC) set-up menu and the front passenger seat is occupied (all except North American Specification (NAS), Australia and Japan market vehicles).
- Required by the occupant classification sensor system (NAS market vehicles only).
OCCUPANT CLASSIFICATION SENSOR SYSTEM
| CLASSIFICATION | SEAT STATUS | PASSENGER AIRBAG STATUS | PASSENGER AIRBAG DEACTIVATION WARNING INDICATOR STATUS |
|---|---|---|---|
| Empty | Empty | Disabled | Off |
| Occupied inhibit | The seat is occupied by a small person or a child (including child seat or infant carrier) restraint is being used | Passenger airbag/side airbag operation is disabled | On |
| Occupied allow | The seat is occupied by an adult | Passenger airbag/side airbag operation is enabled | Off |
| Error | - | Passenger airbag/side airbag operation is disabled | On |
