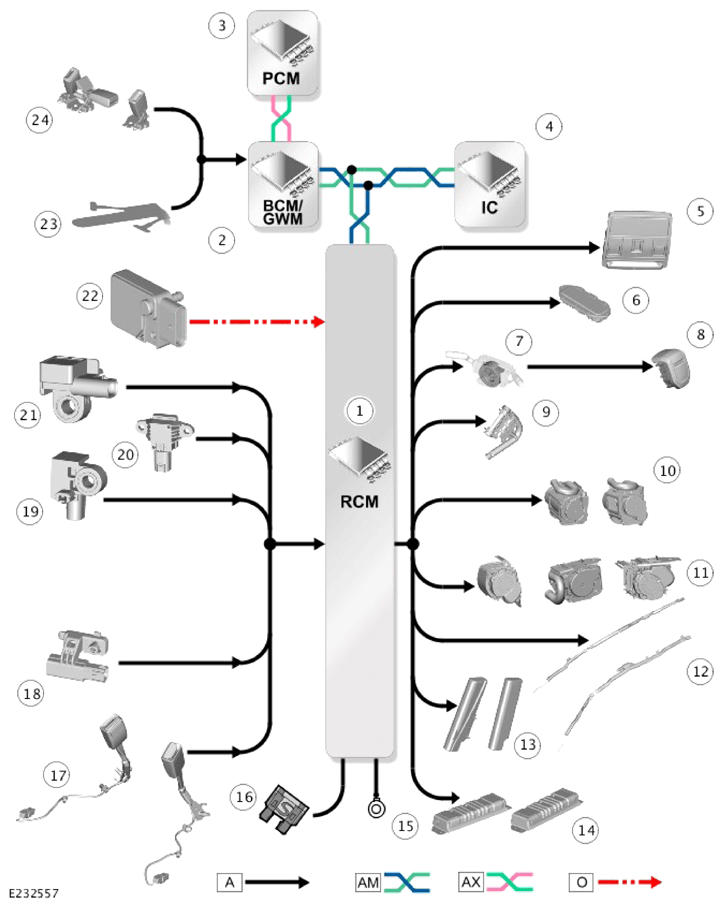

Control Diagram - 1 Of 2
A = HARDWIRED: AM = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) CHASSIS SYSTEMS BUS: AX = FLEXRAY SYSTEM BUS: O = LOCAL INTERCONNECT NETWORK SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Restraints Control Module (RCM) |
| 2 | Body Control Module/Gateway Module (BCM/GWM) |
| 3 | Powertrain Control Module (PCM) |
| 4 | Instrument Cluster (IC) |
| 5 | Passenger airbag deactivation indicator |
| 6 | Passenger airbag |
| 7 | Clockspring |
| 8 | Driver airbag |
| 9 | Seatbelt pretensioner |
| 10 | Front row seatbelt retractor and pretensioner (quantity 2) |
| 11 | Second row seatbelt retractor and pretensioner (quantity 2) |
| 12 | Side air curtains |
| 13 | Side airbags |
| 14 | Lower airbags |
| 15 | Ground |
| 16 | Power supply |
| 17 | Front seatbelt buckle switch (quantity 2) |
| 18 | Seat position sensor - North American Specification (NAS) vehicles only |
| 19 | Impact sensor (quantity 4) |
| 20 | Impact pressure sensor (quantity 2) |
| 21 | Front impact sensor (quantity 2) |
| 22 | Occupant Classification Sensor Control Module (OCSCM) - NAS market vehicles only |
| 23 | Occupant detection sensor |
| 24 | Second row seatbelt buckle switch (quantity 2) |
