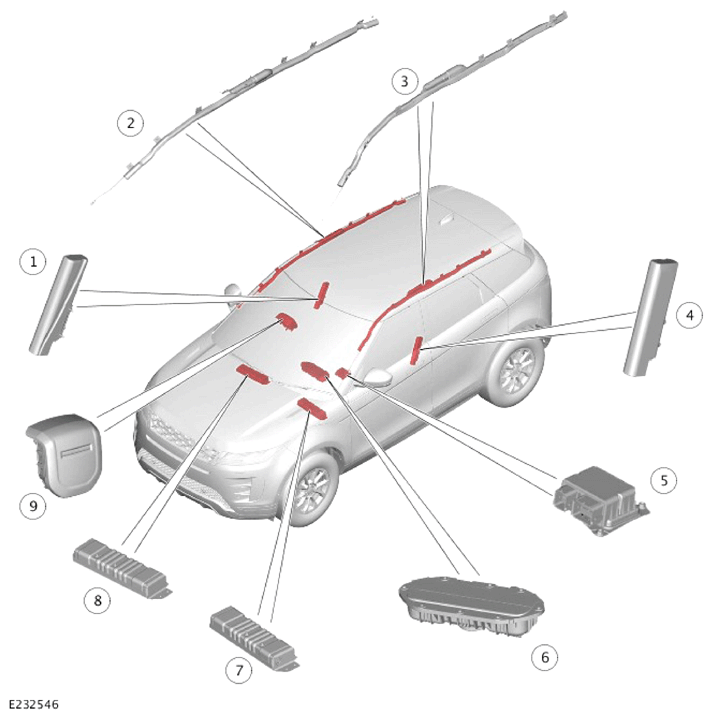

Component Location - 1 Of 5 - Airbags
NOTE:
Right Hand Drive (RHD) variant shown, Left Hand Drive (LHD) variant is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Driver side airbag |
| 2 | Right side air curtain |
| 3 | Left side air curtain |
| 4 | Passenger side airbag |
| 5 | Restraints Control Module (RCM) |
| 6 | Passenger airbag |
| 7 | Passenger side lower airbag |
| 8 | Driver side lower airbag |
| 9 | Driver airbag |
