Battery junction box - except PHEV

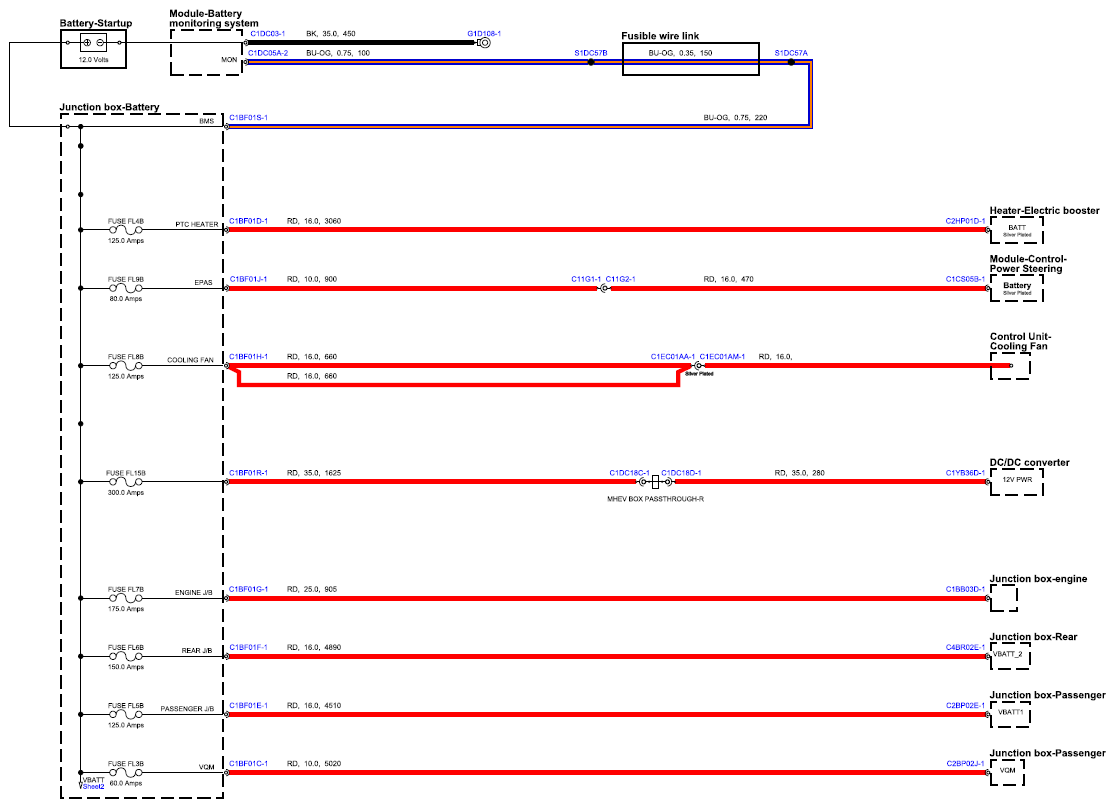

Fig 1: Battery Junction Box Circuit Diagram - Except PHEV (Sheet 1)
G15597495Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

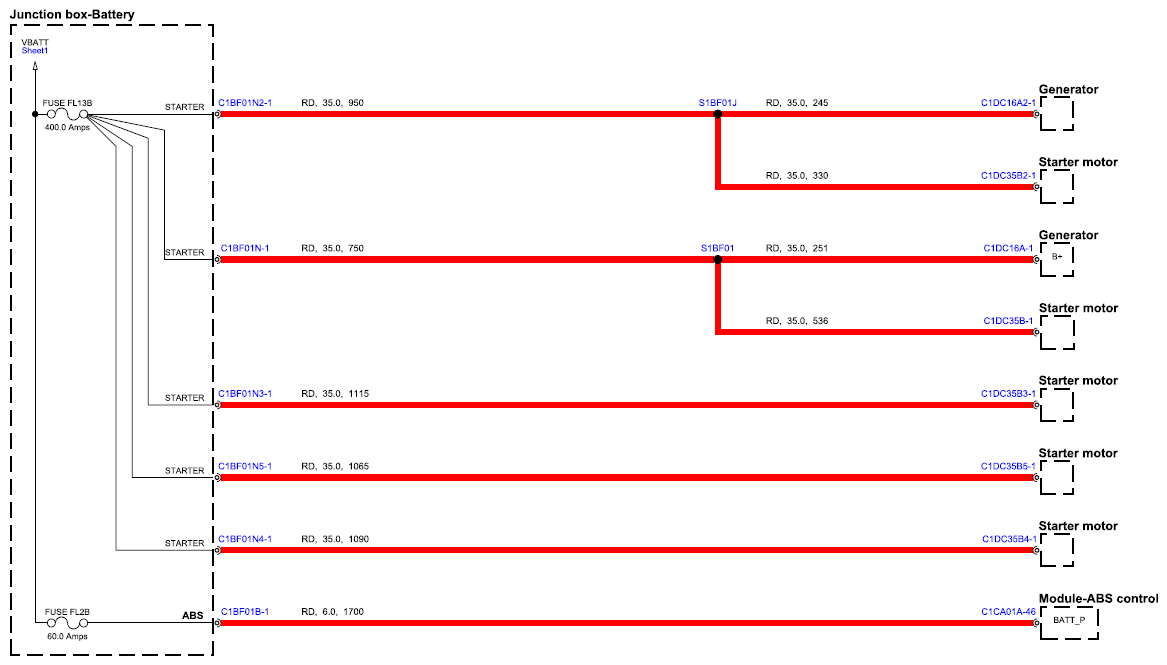

Fig 2: Battery Junction Box Circuit Diagram - Except PHEV (Sheet 2)
G15597496Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
