OEM Wiring Diagrams -- Range Rover EVOQUE L551
>>
413-13 Parking Aid Wiring Diagrams
>>
Image processing (IPMA)
Image processing (IPMA)

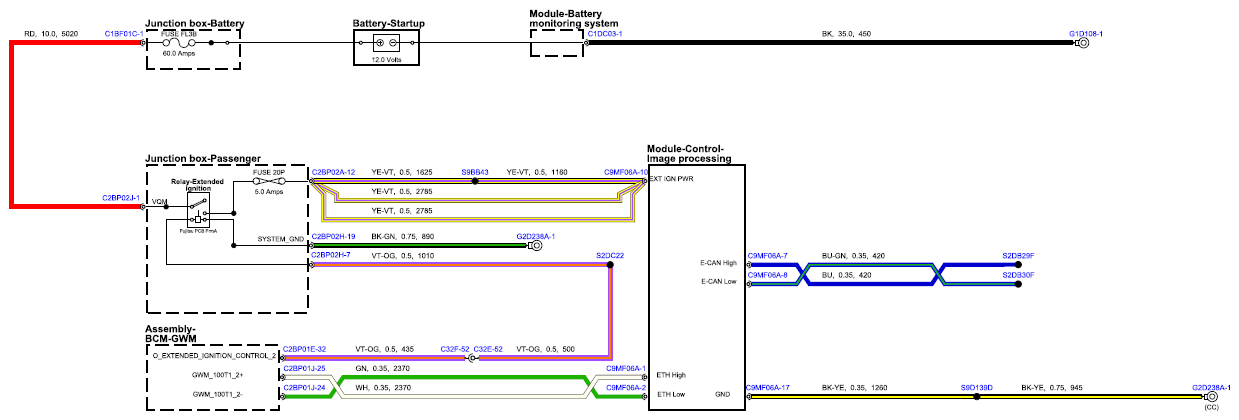

Fig 1: Image Processing (IPMA) Circuit Diagram
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
