Conventional display instrument cluster

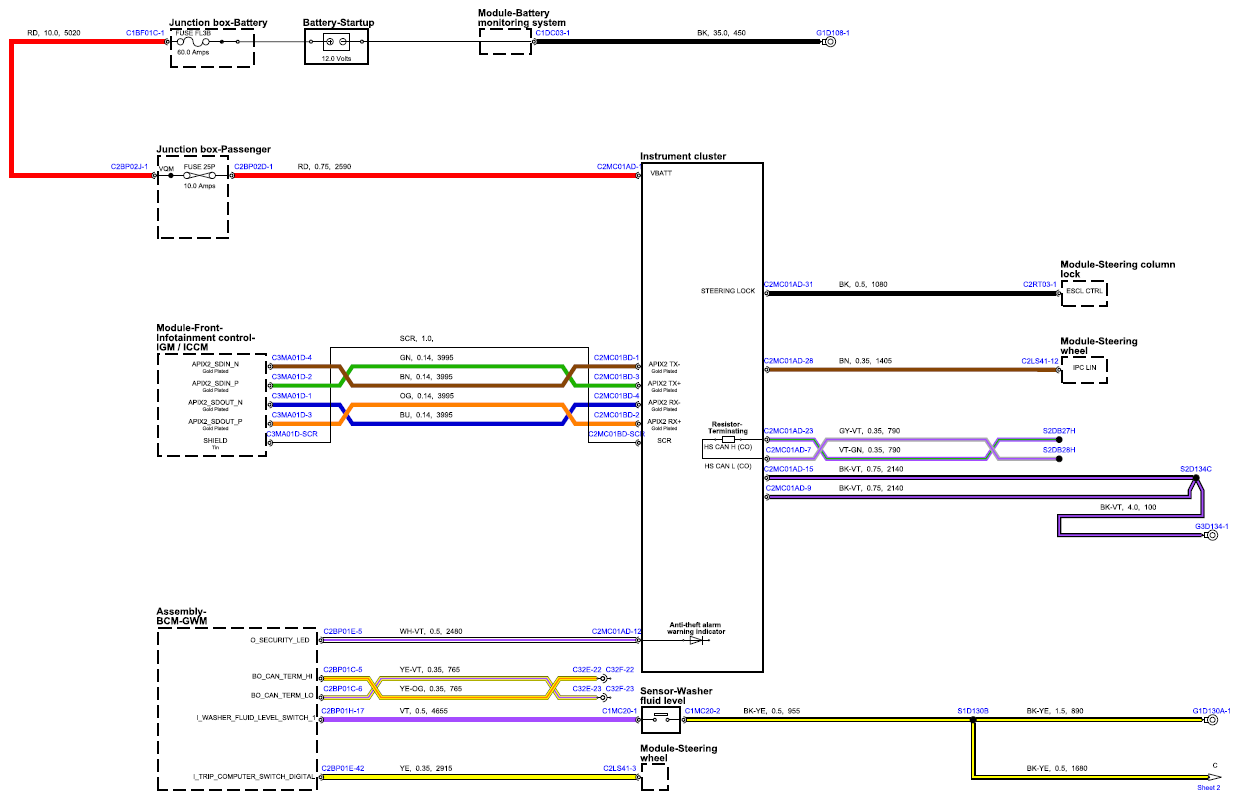

Fig 1: Conventional Display Instrument Cluster Circuit Diagram (Sheet 1)
G15597477Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

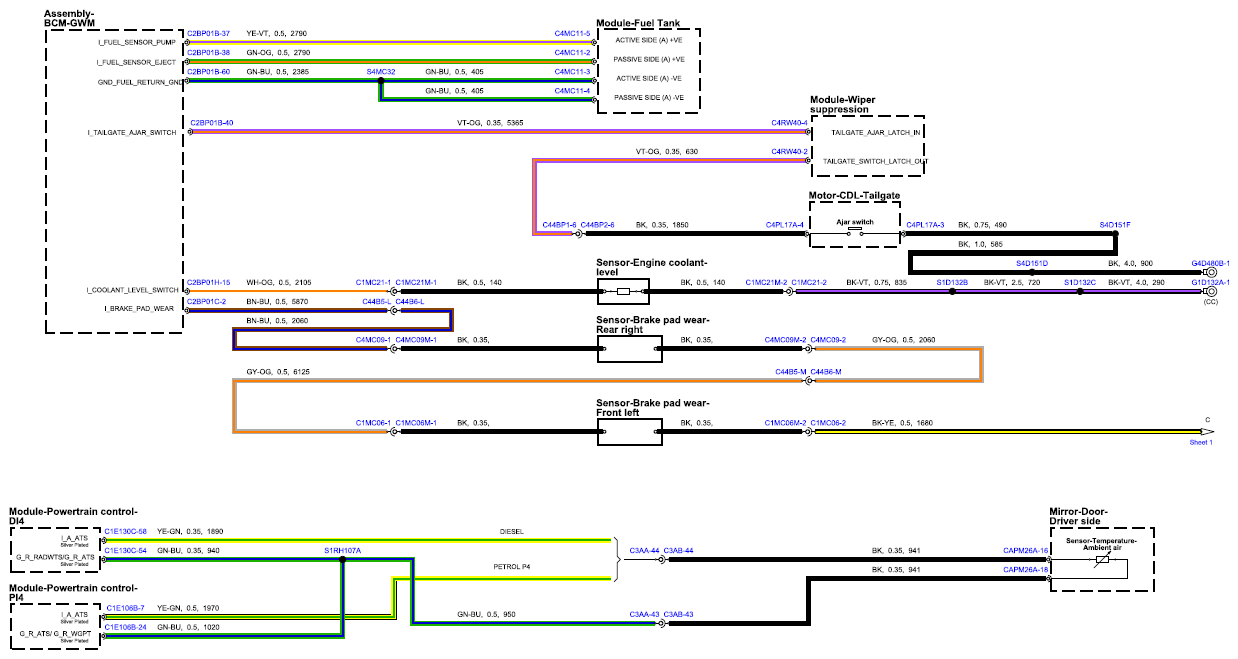

Fig 2: Conventional Display Instrument Cluster Circuit Diagram (Sheet 2)
G15597478Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
