303-06D Starting System - Pi4 Wiring Diagrams: Stop-Start

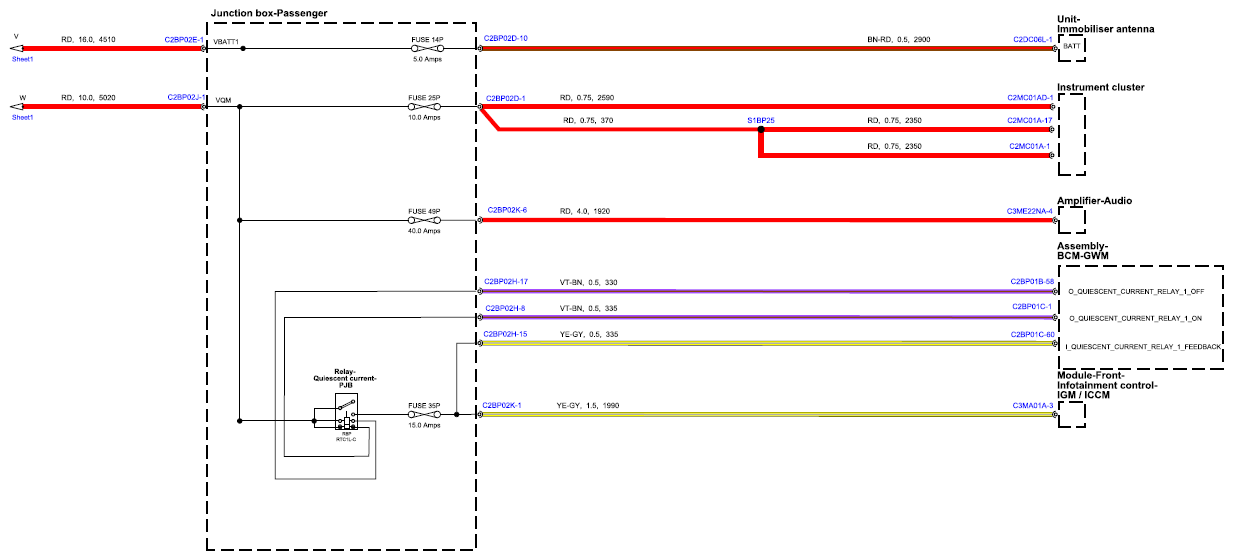

Fig 1: Starting System (Stop-Start) Circuit Diagram - PI3 (Sheet 1)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

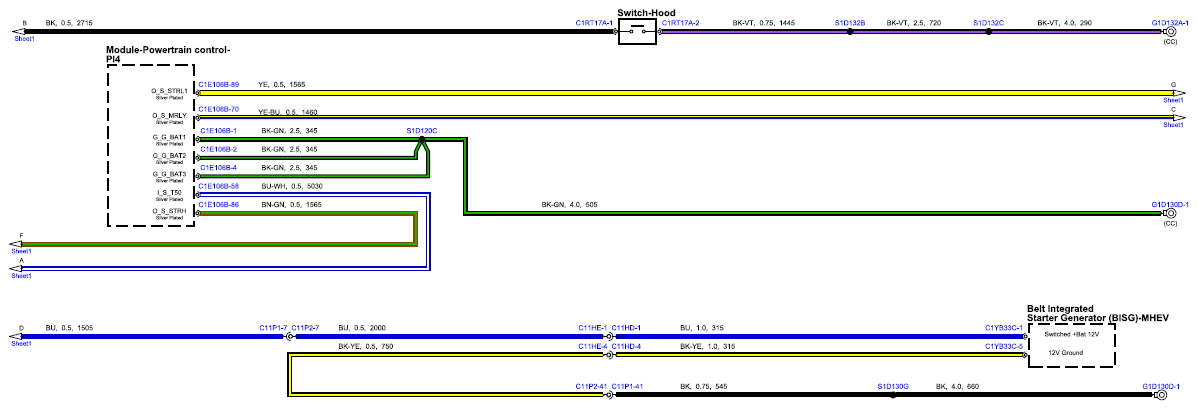

Fig 2: Starting System (Stop-Start) Circuit Diagram - PI3 (Sheet 2)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

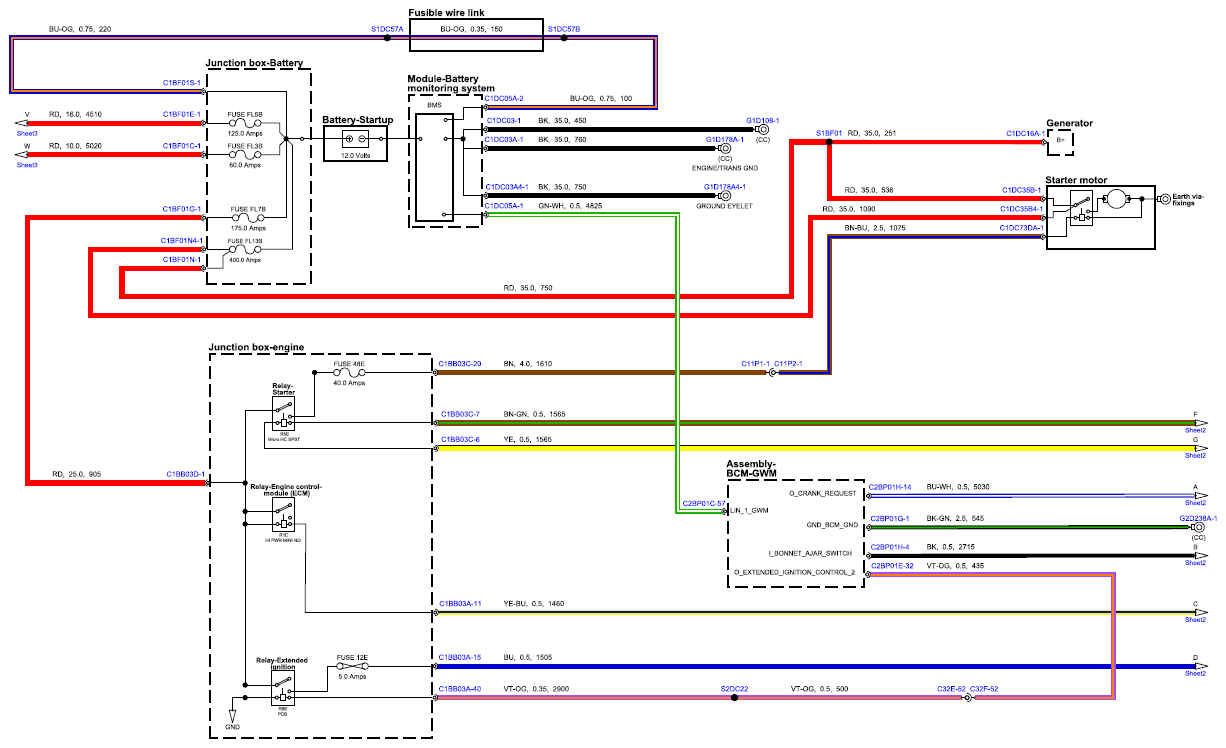

Fig 3: Starting System (Stop-Start) Circuit Diagram - PI3 (Sheet 3)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
