211-02 Power Steering Wiring Diagrams

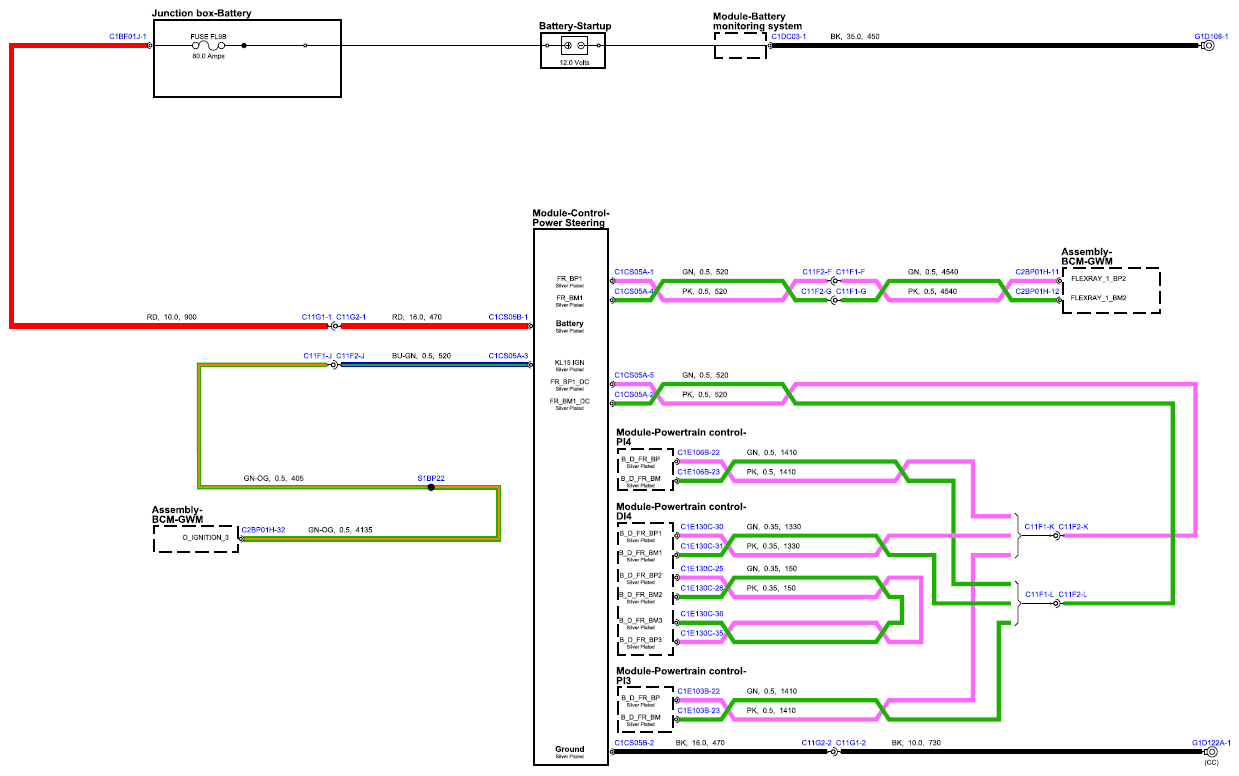

Fig 1: Power Steering Circuit Diagram

G15597387

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
