Ignition Coil-On-Plug (G2299462): Removal

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Remove the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L PETROL .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

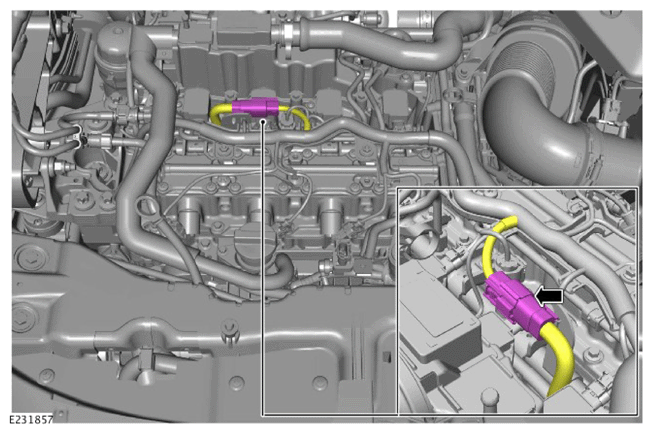

Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

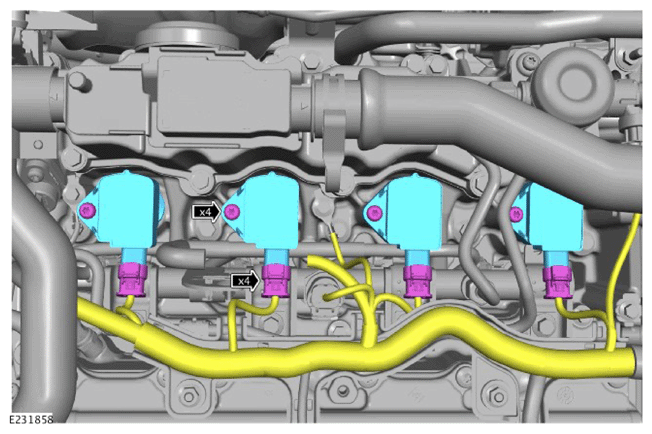

- Disconnect the electrical connectors.
- Remove the bolts.
- Remove the ignition coil-on-plugs.
