Fuel Charging And Controls - INGENIUM I4 2.0L Petrol (G2320551)

Torque Specifications

NOTE:

• * - refer to the procedure for additional information.
• Numbers with a green background are a single use component.

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM		LB-FT		LB-IN

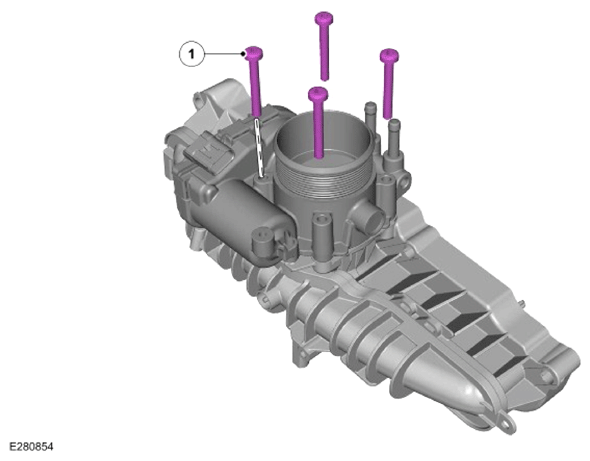

1	Electric throttle bolts	12		9		-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM		LB-FT		LB-IN

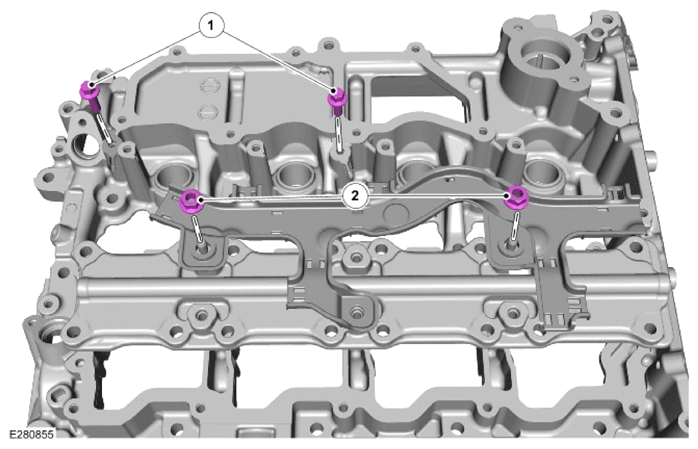

1	Ground cable bolts	9		-		80
2	Engine wiring harness bracket nuts	9		-		80

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM		LB-FT		LB-IN

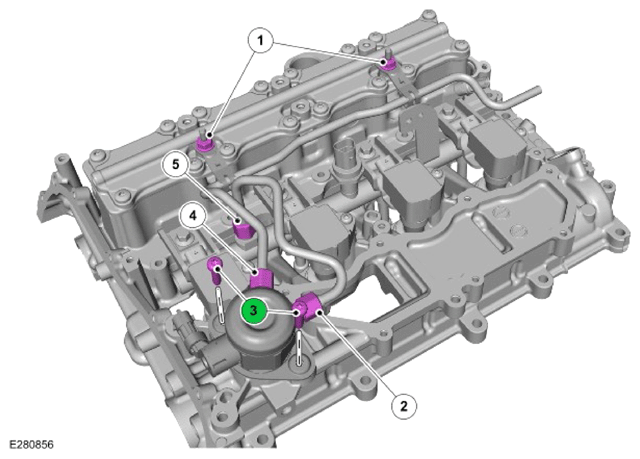

1	Fuel line bracket bolts	11.5		8		-
2	High Pressure (HP) fuel pump union	21		15		-
3	HP  fuel pump bolts*	11.5		8		-
4	Low Pressure (LP) fuel delivery pipe union	21		15		-
5	HP  fuel rail union	21		15		-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION		NM		LB-FT		LB-IN

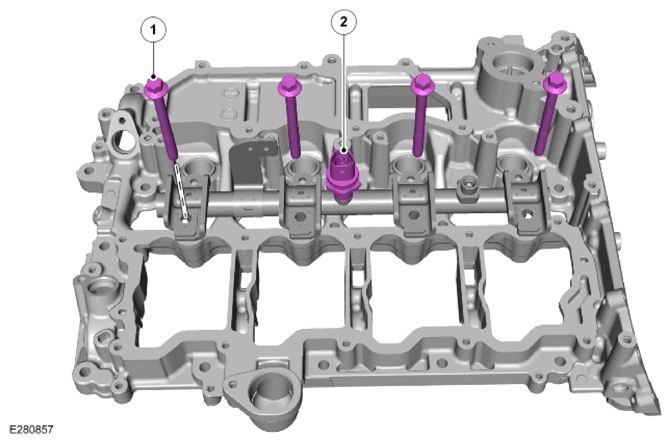

1	Fuel rail bolts*		Stage 1 - 20 Nm	Stage 2 - 30 Nm	Stage 1 - 15 Lb-ft	Stage 2 - 22 Lb-ft	-
2	Fuel rail pressure sensor*		38		28		-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM		LB-FT		LB-IN

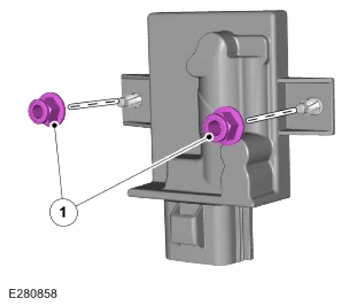

1	Fuel Pump Driver Module (FPDM) nuts	10		7		-
