Throttle Body (G2301111): Removal

CAUTION: Be prepared to collect escaping coolant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Remove the intake manifold assembly.
Refer to: INTAKE MANIFOLD .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

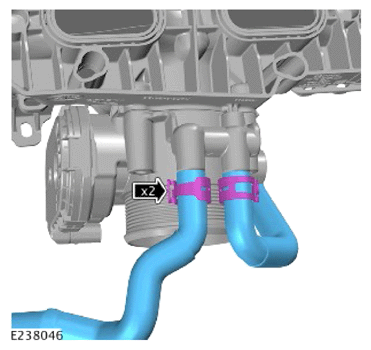

- Remove the 2 clips.
- Remove the 2 coolant hoses.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

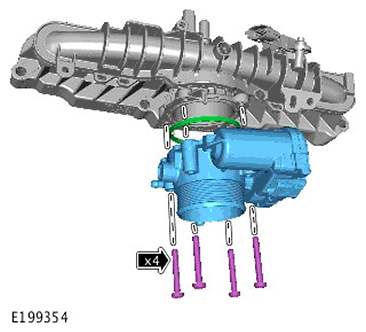

- Remove the 4 screws.
- Remove the throttle body.
- Remove and discard the throttle body gasket.
