Throttle Body (G2301111): Notes

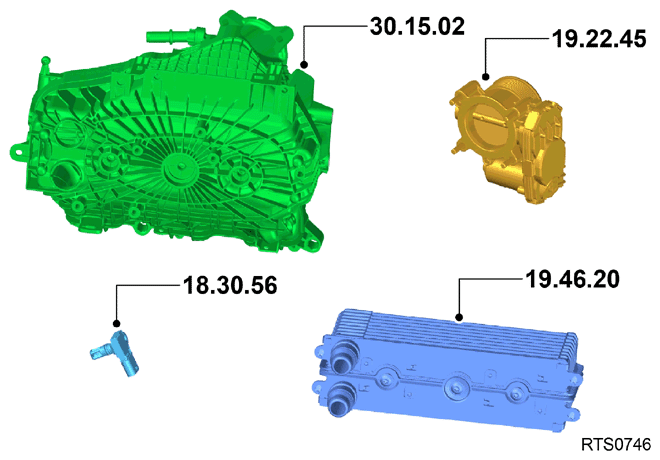

19.22.45 THROTTLE BODY - RENEW 1500 CC, INGENIUM PHEV 0.30
G14916283Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
19.22.45 THROTTLE BODY - RENEW 2000 CC, INGENIUM DIESEL 0.20
G11588603Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
19.22.45 THROTTLE BODY - RENEW 2000 CC, INGENIUM PETROL 3.00
G14916283Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
19.22.45.32 THROTTLE BODY - MHEV - RENEW 1500 CC, INGENIUM PETROL 0.30
G14916283Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
