Engine Vent Oil Separator (G2297556): Removal

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Remove the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L PETROL .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

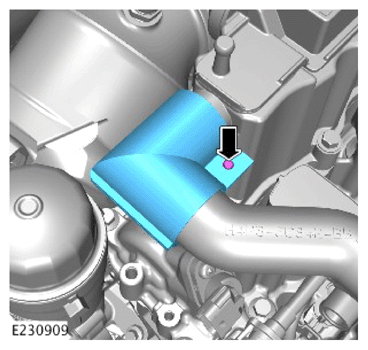

- Release the clip.
- Remove the heatshield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

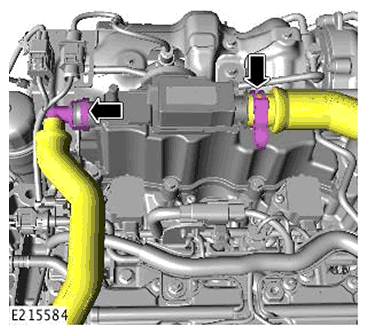

- Disconnect the breather hose.
- Release the clamp.
- Disconnect the breather hose.
NOTE: The bolts will remain captive.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

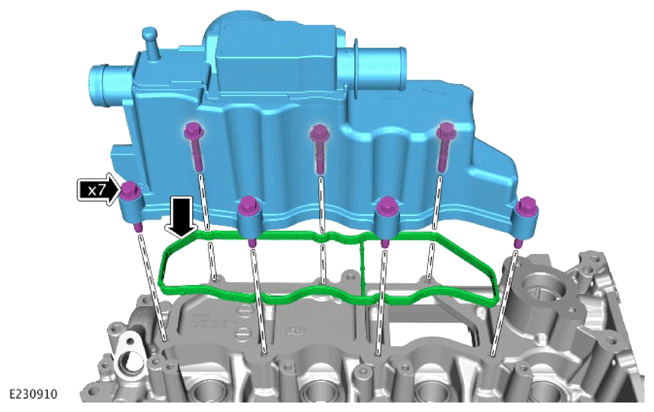

- Loosen the 7 bolts.
- Remove the engine vent oil separator.
- Remove and discard the gasket.
