Engine Vent Oil Separator (G2297556): Installation

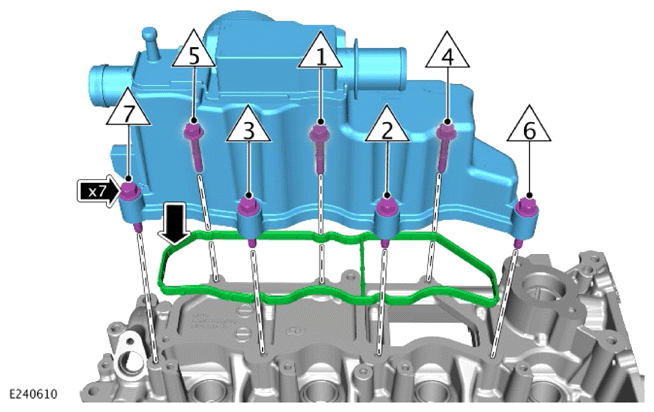

Fig 1: Engine Vent Oil Separator Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install a new gasket.
  Renew Part: Engine vent oil separator to valve cover gasket Quantity: 1 .
- Install the engine vent oil separator.
- Tighten the 7 bolts in the illustrated sequence.
  Torque : 12 Nm
- Connect the 2 breather hoses.
- Install the clamp.
- Install the heatshield.
- Install the clip.
Install the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L PETROL .
