Head Up Display (If Equipped)

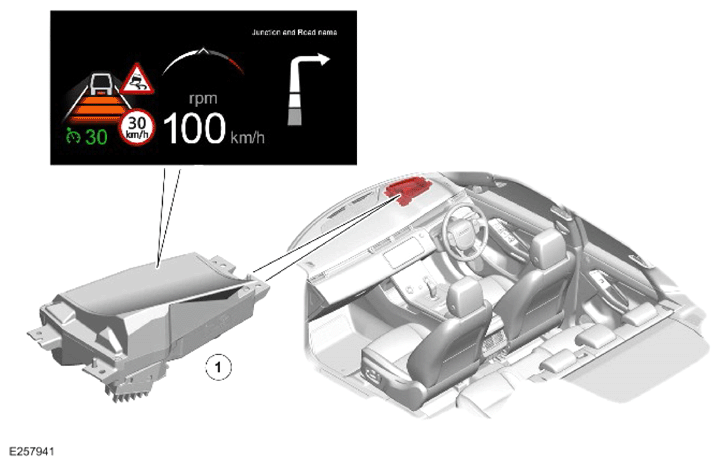

| ITEM | DESCRIPTION |
|---|---|
| 1 | HUD |
The HUD is located inside the instrument panel behind the IPC .
The HUD features a full color TFT display which is video capable. The option requires the IPC virtual display installed.
HUD - Zone layout
NOTE:
Not all the information below is displayed at the same time, zone displays are shown based on prioritization and/or boundary overlap.
The following zones can be displayed in the HUD :
- Speedometer zone - Vehicle speed value.
- Label zone - Speed units.
- Large warnings zone - Forward alert, driver intervene.
- Advanced driver assistance systems zone:
- Lane Departure Warning (LDW)/Lane Keep Assist (LKA) tracking.
- LDW/LKA alert.
- LDW/LKA idle/OFF.
- Adaptive speed control gap setting and follow mode.
- Steering control.
- Side swipe (side obstacle detection control).
- Traffic jam assist/integrated speed control assist.
- Set speed info zone - Speed control.
- Junction and road name zone - Navigation next road name.
- Turn by Turn zone - Navigation display, navigation video display.
- Traffic Sign Recognition+ (TSR+) and TSR zone - Warning signs, vehicle speed units/value, overtake, speed text and sign type.
- Small gear display zone - Gear state.
- Tachometer and large gear display zone - Large gear position and gear upshift indicator.
- Media information zone - Mobile phone and media free text information.
- Full Off-Road/Map zone - Full screen 4x4i.
When selected the HUD feature projects the following driver information display onto the inside of the windshield:
HUD - Display themes
| ITEM | DESCRIPTION |
|---|---|
| 1 | Vehicle speed and navigation next road name |
| 2 | Vehicle speed and navigation |
| 3 | Vehicle speed, gear position and mobile phone information |
| 4 | Junction and road name zone |
