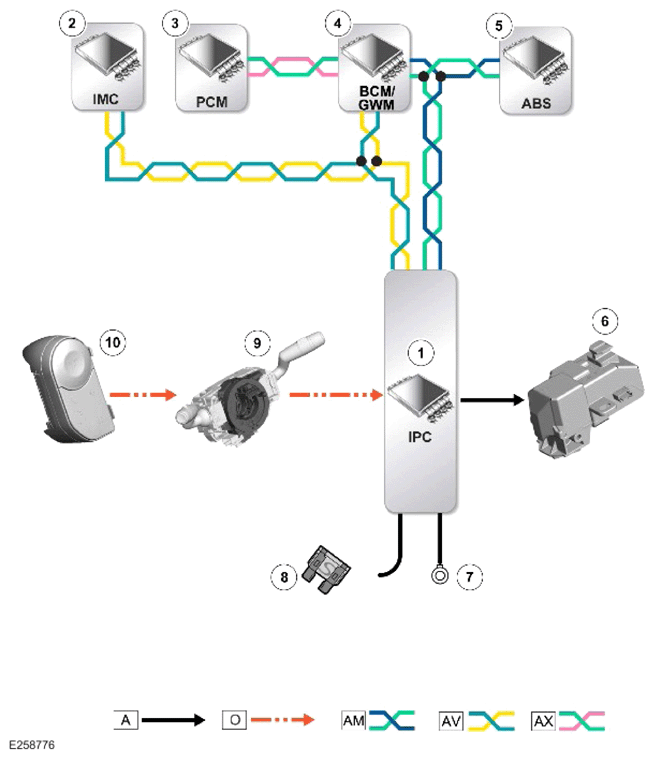

Control Diagram - 1 Of 4 - Instrument Panel Cluster Conventional Display
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
A = HARDWIRED: O = LIN: AM = HS CAN CHASSIS SYSTEMS BUS: AV = HS CAN COMFORT SYSTEMS BUS: AX = FLEXRAY.
| ITEM |
DESCRIPTION |
| 1 |
IPC |
| 2 |
IMC |
| 3 |
PCM |
| 4 |
BCM
/GWM |
| 5 |
ABS |
| 6 |
VIM |
| 7 |
Ground |
| 8 |
Power supply |
| 9 |
Steering Wheel Module (SWM) |
| 10 |
Left steering wheel switch |
