Rear HALFSHAFT Seal (G2339355): Installation

  1. CAUTION:
    • Make sure that the seal is correctly located.
    • Take extra care not to damage the seal.

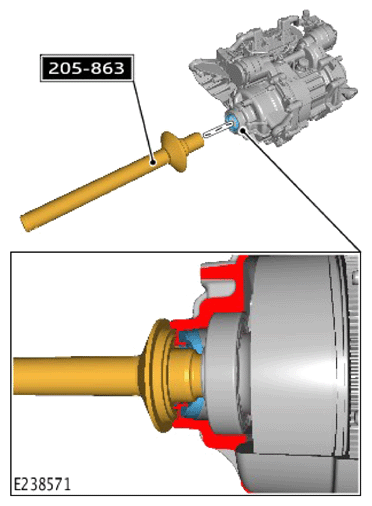

    G14422754Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Use the special tool to install a new seal.

    Special Tool(s): 205-863

  2. Install the rear halfshaft.

    Refer to: REAR HALFSHAFT .
