Differential Rear Bush (G1775378): Removal

  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Remove the rear differential.

    Refer to: REAR DRIVE UNIT .

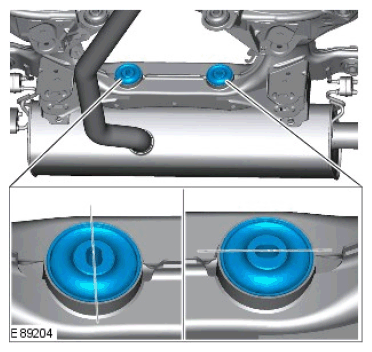

  3. G11675226Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Take note of the fitted position of the rear bushings. The RH bushing slot is positioned vertically and the LH bushing slot is positioned horizontally.

  4. CAUTION: Note the fitted position of the component prior to removal.

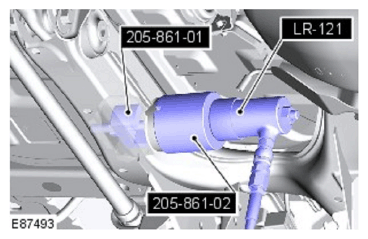

    G11675227Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using the special tool, remove the bushing.

    Special Tool(s): 205-861-01  , 205-861-02  , LR-121
