Rear Drive HALFSHAFTS (G2319457)
GENERAL SPECIFICATION
| ITEM |
SPECIFICATION |
| Type |
Fully floating, solid shafts with inner and outer Constant Velocity joint (CV) joints |
RECOMMENDED LUBRICANT SPECIFICATION
| ITEM |
SPECIFICATION |
| Inboard CV
joint |
Use grease supplied with replacement boot kit |
| Outboard CV
joint |
Use grease supplied with replacement boot kit |
Torque Specifications
NOTE:
Numbers with a green background are a single use components.

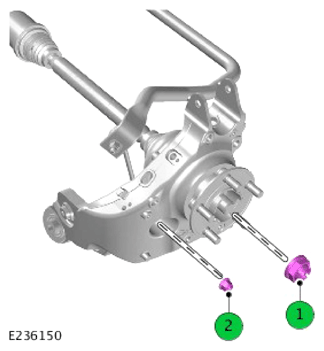

| COMPONENT TORQUE LOCATION |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
TORQUE SPECIFICATION
| |
DESCRIPTION |
NM |
LB-FT |
LB-IN |
| 1 |
Halfshaft nut |
Stage 1: 300 |
Stage 2: Loosen 90° |
Stage 1: 221 |
Stage 2: Loosen 90° |
- |
| - |
- |
Stage 3: 80 |
Stage 4: 60° |
Stage 3: 59 |
Stage 4: 60° |
- |
| 2 |
Stabilizer bar link nut |
70 |
51 |
- |

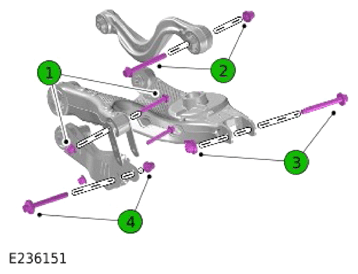

| COMPONENT TORQUE LOCATION |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| |
DESCRIPTION |
NM |
LB-FT |
LB-IN |
| 3 |
Upper control to wheel knuckle nut and bolt |
Stage 1: 40 |
Stage 2: 180° |
Stage 1: 30 |
Stage 2: 180° |
- |
| 4 |
Lower control arm link nuts and bolts |
Stage 1: 48 |
Stage 2: 60° |
Stage 1: 35 |
Stage 2: 60° |
- |
| 5 |
Lower control arm to wheel knuckle nut and bolt |
Stage 1: 70 |
Stage 2: 240° |
Stage 1: 52 |
Stage 2: 240° |
- |
| 6 |
Toe link to wheel knuckle nut and bolt |
Stage 1: 60 |
Stage 2: 180° |
Stage 1: 44 |
Stage 2: 180° |
- |
