Electric Park Brake Actuator (G2319503): Installation

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the new O-ring seal.
  Renew Part: Electric park brake actuator O-ring seal and bolt kit Quantity: 1 .

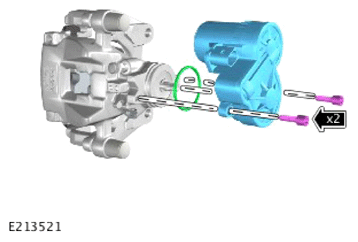

- Install the Electric Park Brake (EPB) actuator.
- Install and tighten the 2 bolts.
  Torque : 9 Nm
NOTE: Make sure the wiring harness is routed correctly.
- Connect and secure the wiring harness.
- Install and tighten the wiring harness bracket bolt.
  Torque : 10 Nm
Install the wheel and tire.
Refer to: WHEEL AND TIRE .
NOTE: This step is only required if the diagnostic equipment is not available.

Deactivate the service mode function of the EPB.

Refer to: ELECTRIC PARK BRAKE SERVICE MODE ACTIVATION AND DEACTIVATION .
Calibrate the EPB using the Jaguar Land Rover (JLR) approved diagnostic equipment.
General Equipment: Jaguar Land Rover approved diagnostic equipment
