Hydraulic Brake Actuation (G2340102)

Torque Specifications

NOTE: Numbers with a green background are a single use component.

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLCJAGUAR LAND ROVER NORTH AMERICA, LLCJAGUAR LAND ROVER NORTH AMERICA, LLC Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLCJAGUAR LAND ROVER NORTH AMERICA, LLCJAGUAR LAND ROVER NORTH AMERICA, LLC Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLCJAGUAR LAND ROVER NORTH AMERICA, LLCJAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM		LB-FT		LB-IN

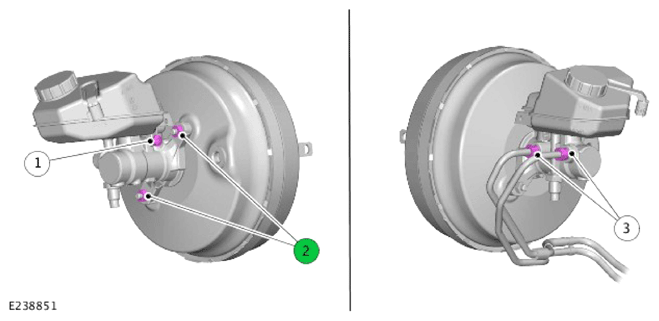

1	Brake fluid reservoir retaining bolt	7		-		62
2	Brake master cylinder retaining nuts	25		18		-
3	Brake master cylinder pipe unions	17.5		13		-

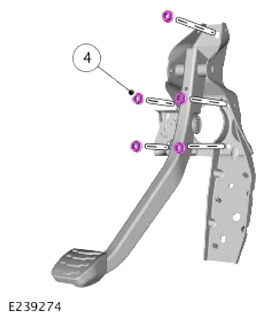

4	Brake pedal retaining nuts	25		18		-

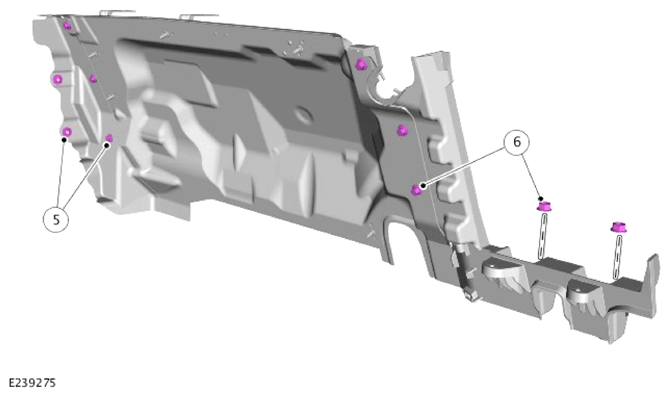

5	Bulkhead panel retaining bolts and nuts	10		7		-
6	Startup battery support bracket retaining bolts and nuts	7		-		62
