Roof Cross Bars (G2271669): Removal

NOTE:

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

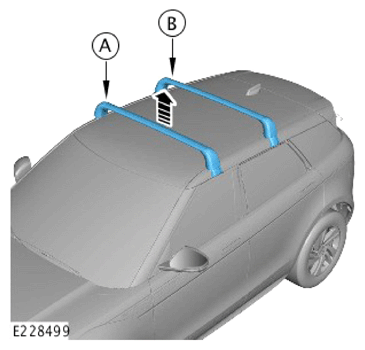

Remove the front roof cross bar (A) first.
NOTE: Repeat this step for the other side of the roof cross bar.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

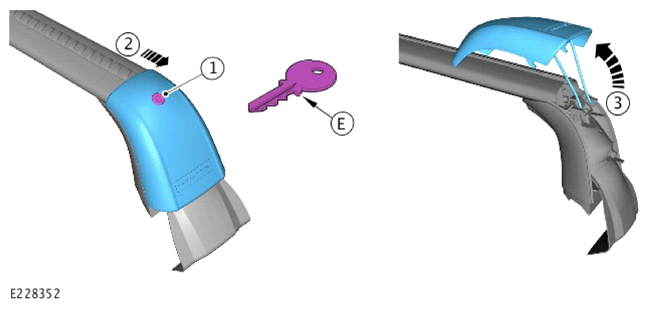

Move the roof cross bar side cover on one side of roof cross bar (A) as illustrated.
1. Using the supplied key (E), unlock the roof cross bar side cover.
2. Move the roof cross bar side cover outwards.
3. Lift the roof cross bar side cover over the top of the roof cross bar.
NOTE: Repeat this step for the other side of the roof cross bar.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

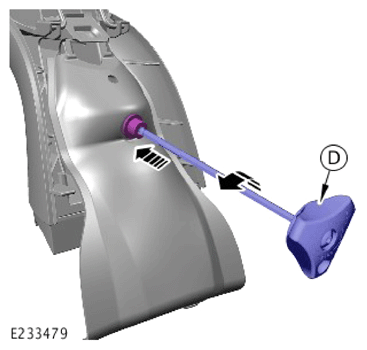

Loosen the bolt using the supplied tool (D) as illustrated. This will allow some movement of the location plate.
NOTE:
- This step requires the aid of another person.
- Repeat this step for the other side of the roof cross bar.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

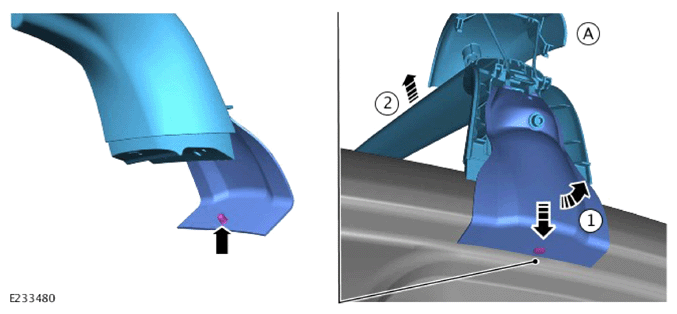

Remove the roof cross bar from the vehicle roof on one side of the vehicle as illustrated.
1. Slightly lower the location plate and then swing outwards to clear the dowel from the hole in the vehicle body.
2. Carefully lift the roof cross bar away from the vehicle roof.
Repeat steps 2 to 4 to remove roof cross bar (B).
