Roof Box Ski Carrier Adapter (G2262143): Installation

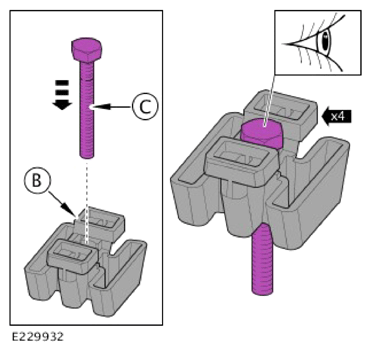

CAUTION: Make sure the bolts are installed as illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

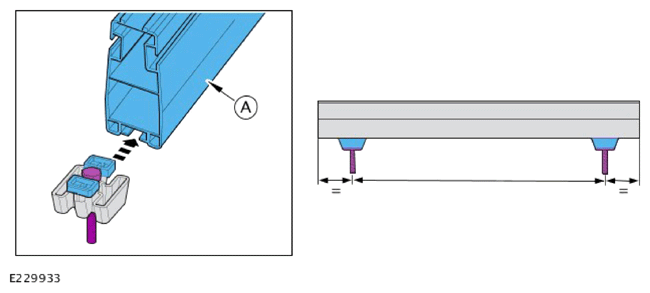

CAUTION: The fixings must be equally spaced in the roof box inserts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

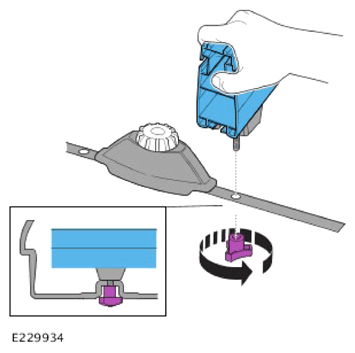

Install the roof box inserts into the roof box.
- Torque: 2 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

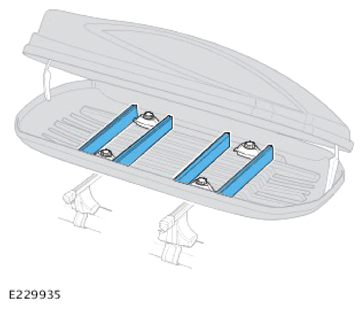

The 2 roof box inserts can be installed into the positions as illustrated.
