Roof Box (G2816728): Notes
VPLZR0191/C2Z32603
WARNING:
Accessories which are not properly fitted can be dangerous. Read the instructions carefully prior to fitting. When fitting, comply with instructions at all times. If in doubt, contact your nearest approved retailer/authorized repairer.

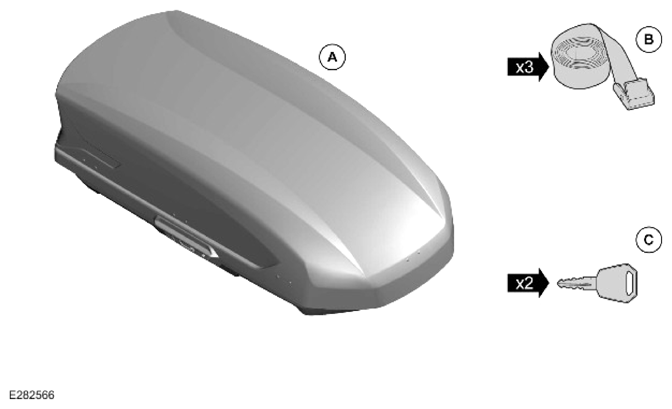

Roof Box (bill of materials)
| DESCRIPTION | PART NUMBER |
|---|---|
| Land Rover Roof Box | VPLZR0191 |
| Jaguar Roof Box | C2Z32603 |
Warnings/Cautions/Notes
WARNING:
- Do not exceed 130 km/h (80 mph).
- The roof box can carry up to 75 kg, but this may be limited by the roof-carrying capacity of your vehicle. Refer to the vehicle's Owner's Handbook to find the roof-carrying capacity of your vehicle (Max available roof box load = vehicle roof carrying capacity - weight of roof box - weight of cross bars). This calculation assumes no additional roof-carrying accessories are fitted to the cross bars.
- Be aware of the extra vehicle height.
- The roof box is not suitable for carrying building materials, loose materials, flammable, explosive or corrosive substances, pets and livestock, or sharp implements.
- Make sure body parts are not trapped by the lid when loading.
- Make sure the load is secured within the roof box using retention straps before starting a journey.
- Remove the roof cross bars and roof box before using an automatic car wash.
- Adapt your driving technique to suit changes in vehicle handling.
Your Key Number:=
NOTE:
The locking system used on this accessory is compatible with the Thule key system. Take note of your key number (you may use the field below) in case a replacement is required. To order replacement keys, refer to your local Thule retailer/website and quote your key model number. For this accessory, the key model number begins with 1500002, so for example, the model number for key number N123 would be 1500002123.
