Roof Box (G2816728): Installation

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

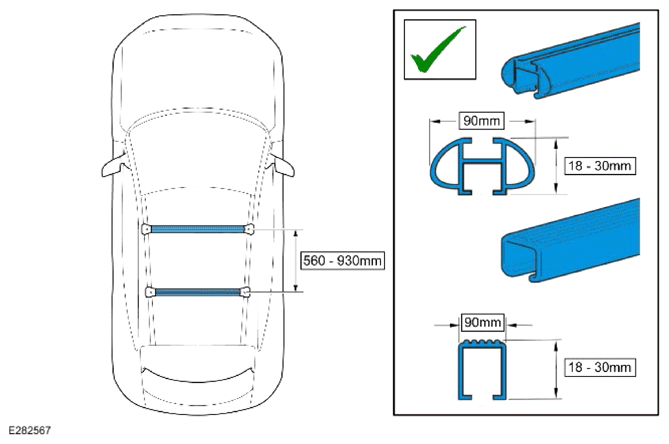

Make sure your cross bars are a suitable size and distance.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

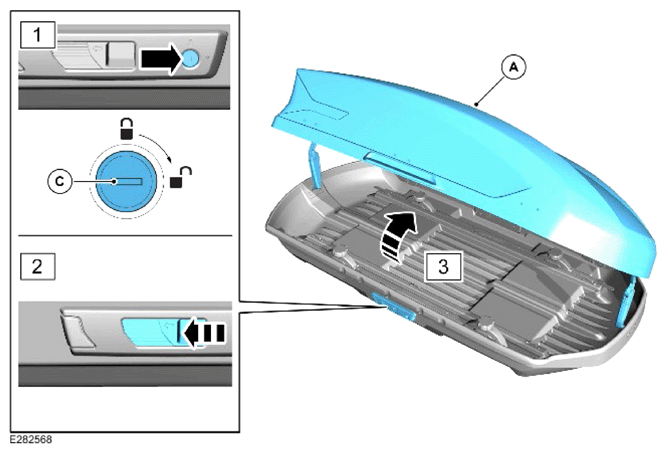

Open roof box.

1. Insert key (C) into key hole and turn clockwise to unlock position.
2. Slide the button to the left until a click is heard to release the roof box lid from its (x3) latches.
3. Open the roof box lid (A).

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

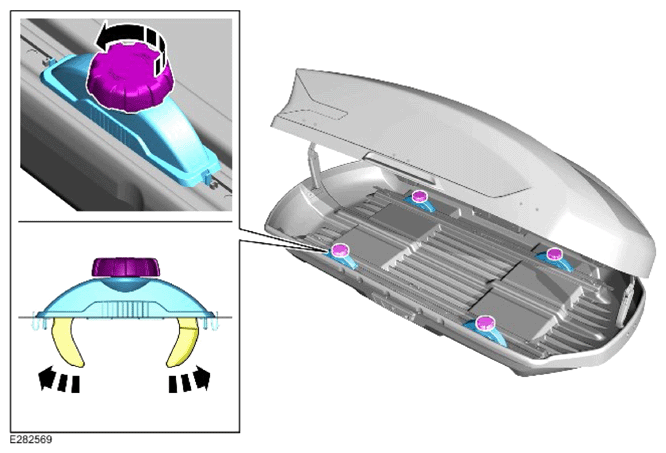

Open (x4) clamps by turning the handle counter clockwise.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

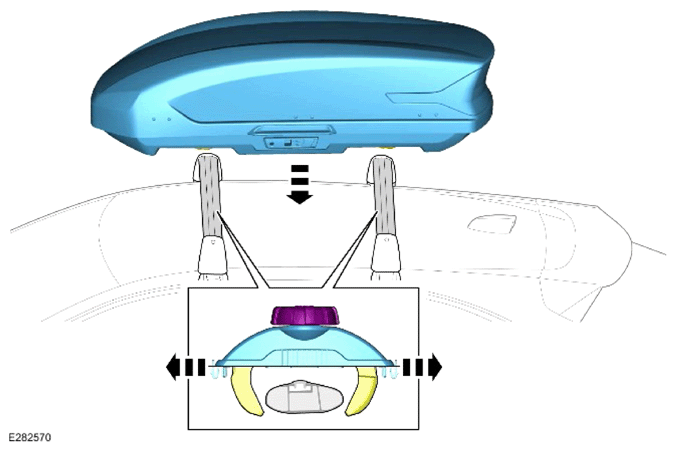

Lower roof box onto the vehicles cross bars. Adjust the position of each clamp by sliding them to align with your cross bars.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

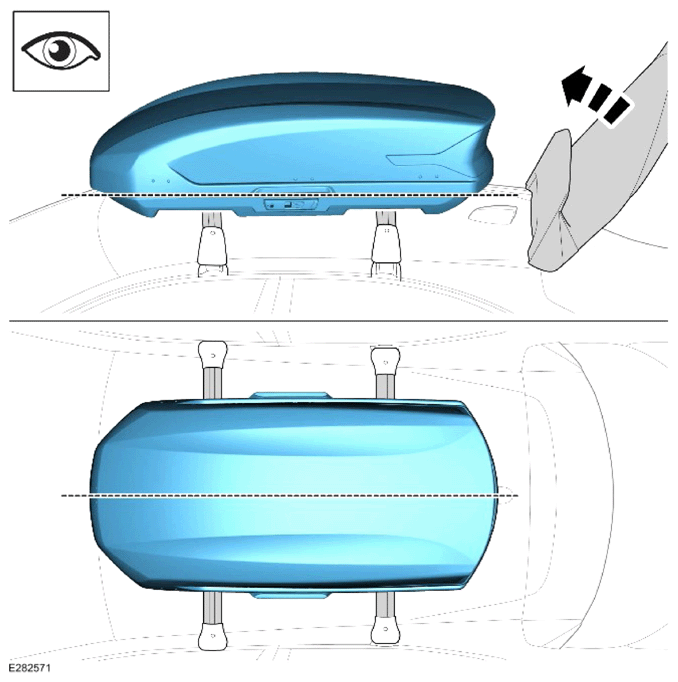

Align roof box correctly (straight) as shown, while keeping clearance for boot lid to fully open.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

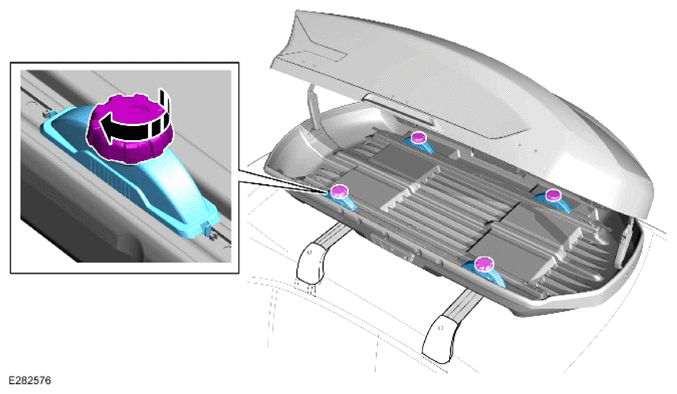

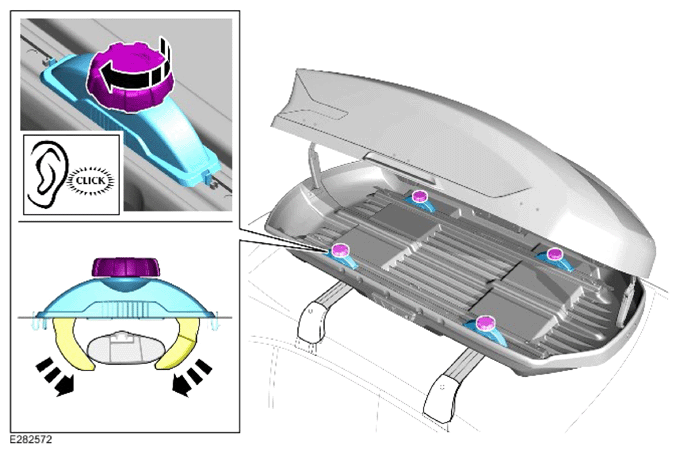

Secure the roof box to the cross bars by rotating (x4) clamps clockwise until a clicking sound is heard.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

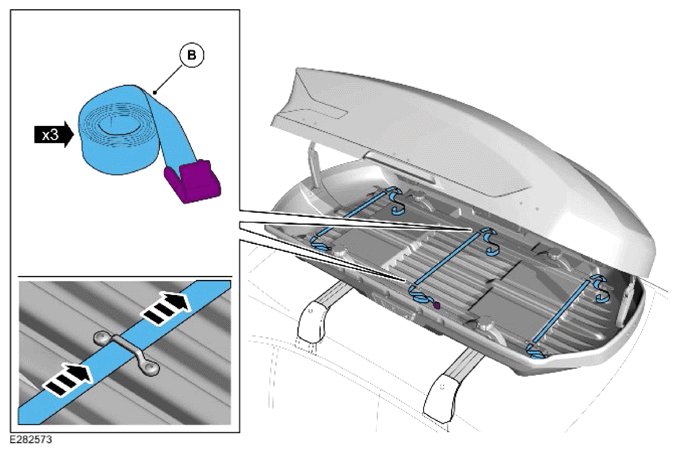

Feed straps (B) through brackets as shown. Only use as many as required.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

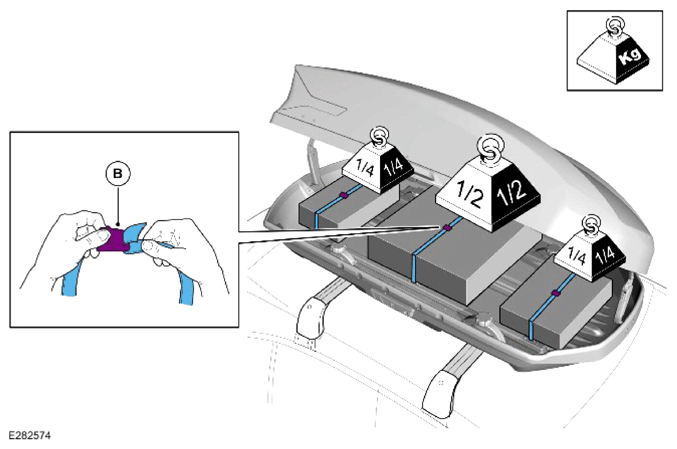

Load the roof box with the weight evenly distributed. Then secure with straps (B).

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

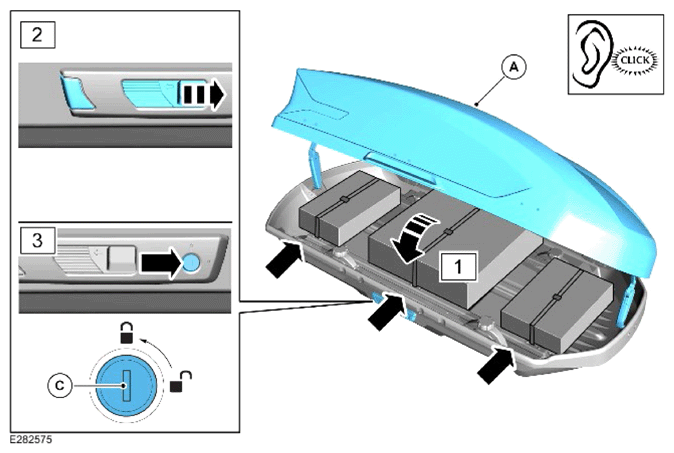

Close roof box.

1. Close the roof box lid (A). A click will be heard when each of the (x3) latches (highlighted by arrows) are secured. You may need to press the lid down at each latch position until three clicks are heard.
2. When securely closed the sliding button will return to position shown.
3. Turn key (C) counter clockwise to lock roof box and remove key.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

After every 100 km or 60 miles, tighten all clamps.
