Aqua Sports Carrier (G2458873): Installation

1. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Unlock and remove the cross bar end caps.

2. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Slide out both of the trims from the roof bars.

3. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

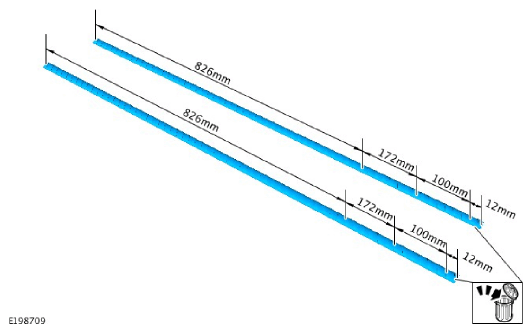

   1. Using a suitable cutting tool, cut the roof bar trims using the measurements illustrated.
   2. Discard the smallest section of roof bar trim.

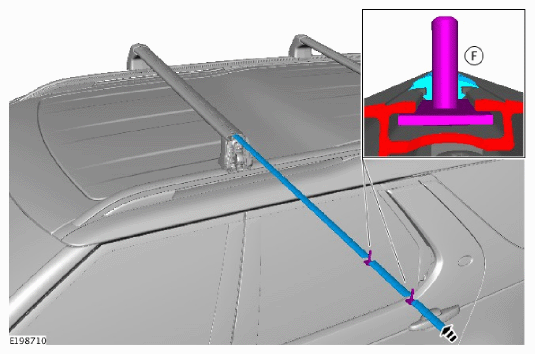

4. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   1. Insert the roof bar trim and the fixing 'B' into the roof bar as illustrated.
   2. Install and lock roof bar end cap.

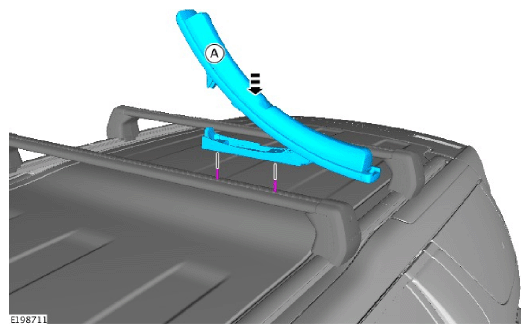

5. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Lower the carrier onto the roof bar.

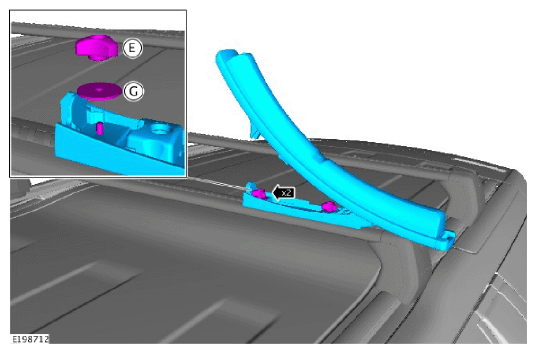

6. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

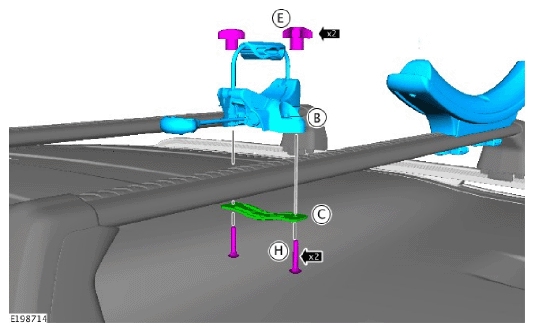

   Install the fixings and the washers (E) and (G).

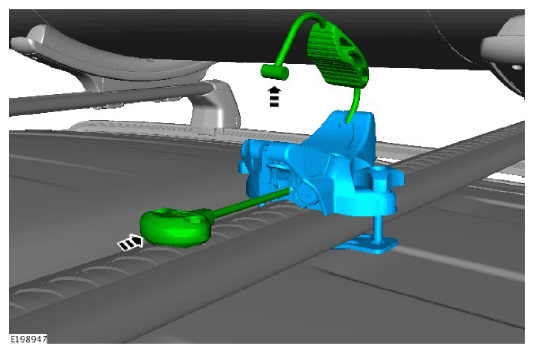

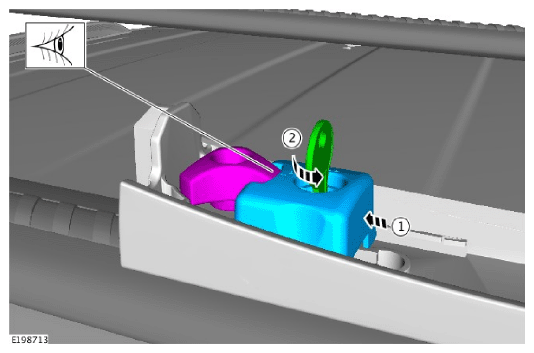

7. NOTE: Make sure the fixing is aligned with the lock before engaging.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   1. Slide the lock.
   2. Lock using the key.

8. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Lower the carrier onto the roof bar and secure.

9. Follow steps 4 to 8 for the other carriers.

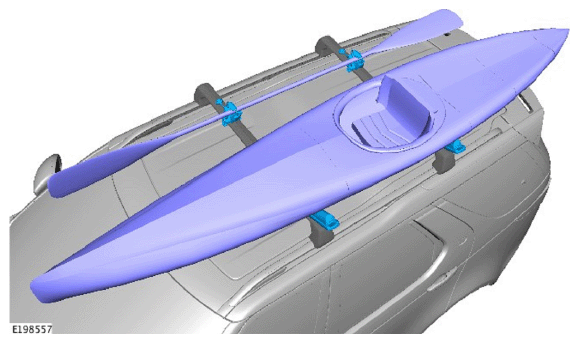

Fitting Aquasport Equipment.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

1. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

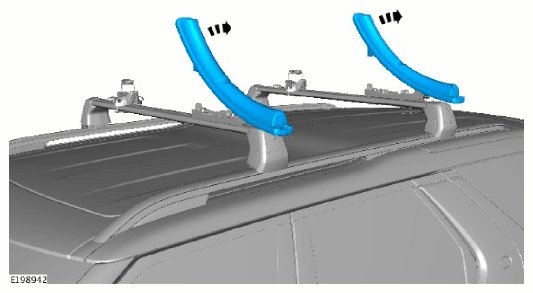

   Lift the carriers.

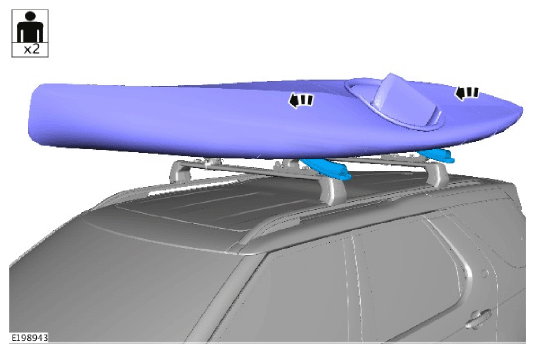

2. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   With assistance, load the carriers.

3. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

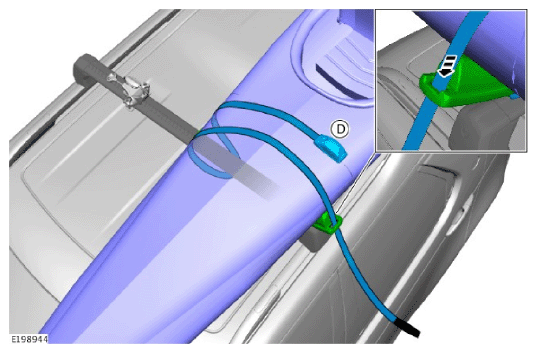

   Secure the load with the strap (D).

4. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

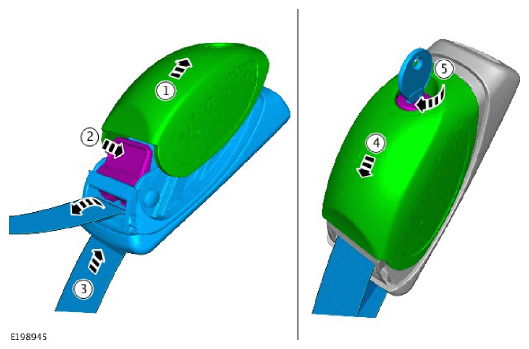

   Lock the strap.

   1. Lift the cover.
   2. Press the strap lock.
   3. Thread the strap through the lock.
   4. Close the cover.
   5. Lock with the key.

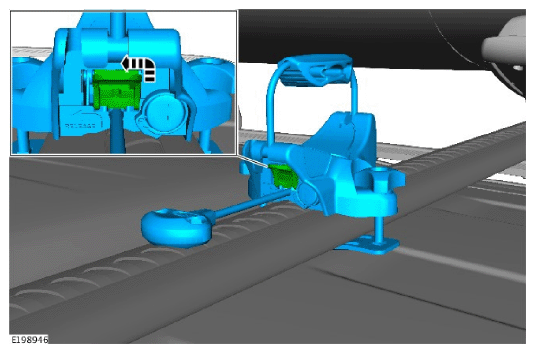

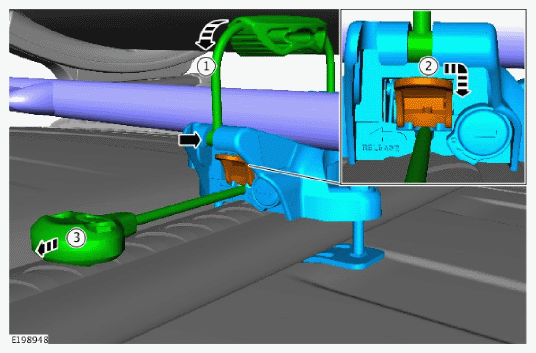

5. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Lift and slide the lock.

6. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Release the strap.

7. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Load the carrier.

   1. Secure the strap.
   2. Lock the strap.
   3. Pull the strap tight.

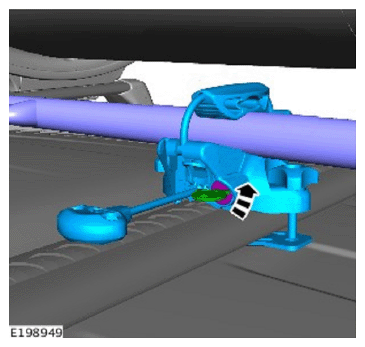

8. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Using the key, lock the carrier.

9. WARNING: Do not exceed 130 km/h or 80 mph.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
