Roof Opening Panel Weatherstrip (G2391314): Removal

NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Remove the roof opening panel.

    Refer to: ROOF OPENING PANEL .

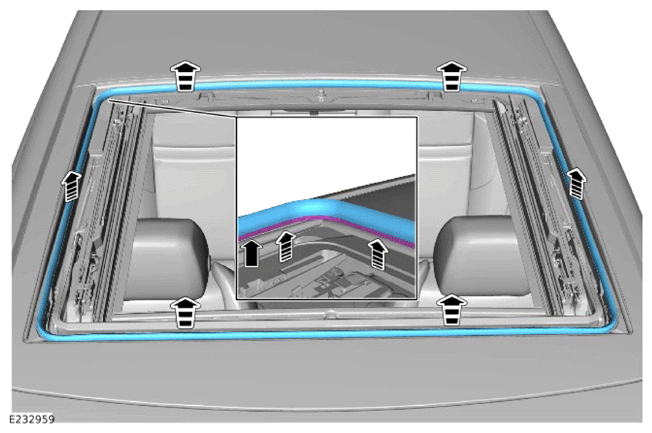

  2. G14459026Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the roof opening panel weatherstrip.
