Roof Opening Panel (G2389857): Removal

NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Open the roof opening panel blind.
  2. Disconnect the startup battery ground cable.

    Refer to: 12V SYSTEM DISCONNECT .

  3. CAUTION: Take extra care not to damage the component.
    NOTE: Repeat this step for the other side.
    G14459002Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

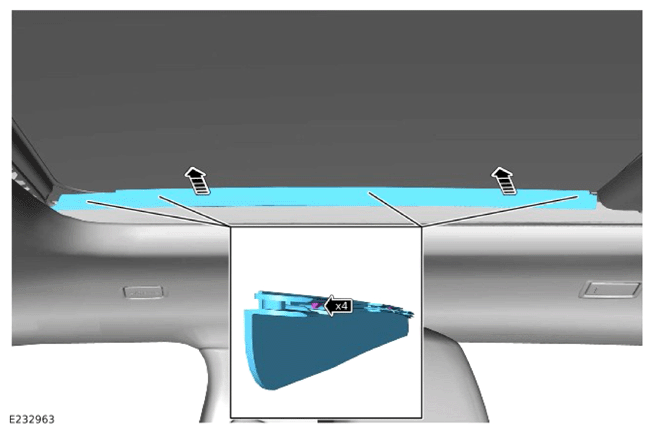

    • Release the 4 clips.
    • Remove the trim panel.
  4. NOTE: Repeat this step for the other side.
    G14459003Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

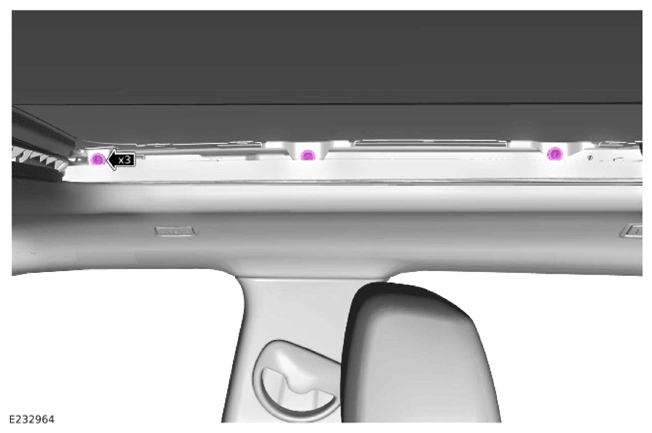

    Remove the 3 bolts.

  5. NOTE: This step requires the aid of another technician.
    G14459004Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

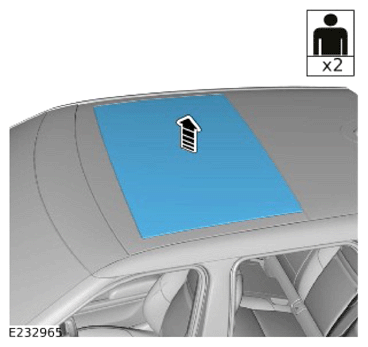

    Remove the roof opening panel.
