Roof Opening Panel (G2389857): Installation

  1. NOTE: This step requires the aid of another technician.
    • Install the roof opening panel.
    • Install but do not fully tighten the 6 bolts.
  2. NOTE: The roof opening panel should be positioned in the center of roof opening panel aperture.

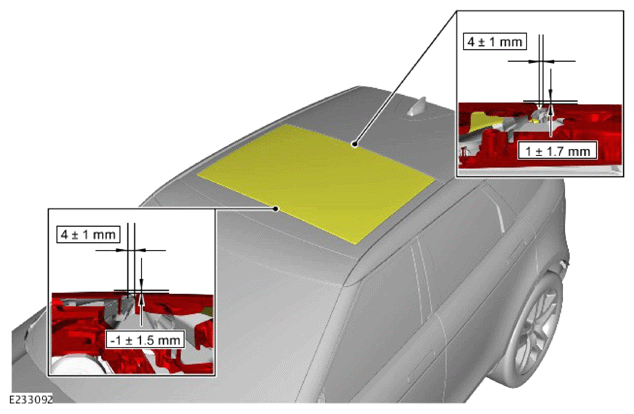

    G14459005Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Align the roof opening panel as illustrated.

  3. NOTE: Make sure that the clips are correctly located.
    • Tighten the 6 bolts.

      Torque  : 5 Nm

    • Install the 2 trim panels.
    • Install the 8 clips.
  4. Connect the startup battery ground cable.

    Refer to: 12V SYSTEM DISCONNECT .

  5. Close the roof opening panel blind.
