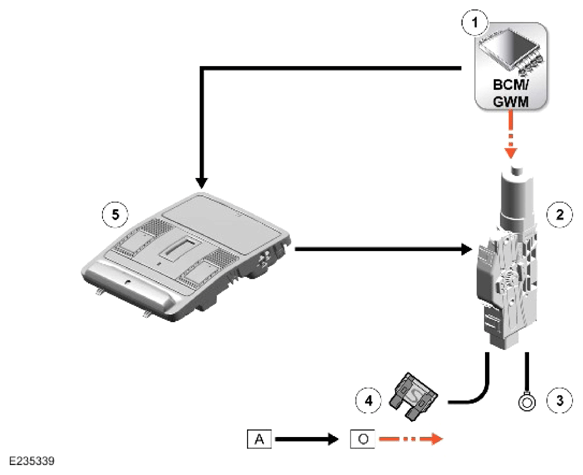

Control Diagram
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
A = HARDWIRED: O = LOCAL INTERCONNECT NETWORK (LIN) BUS.
| ITEM |
DESCRIPTION |
| 1 |
Body Control Module/Gateway Module (BCM/GWM) |
| 2 |
Roof blind motor (with control module) |
| 3 |
Ground |
| 4 |
Power supply |
| 5 |
Roof blind switch - Front overhead console |
