Remote Function Receiver

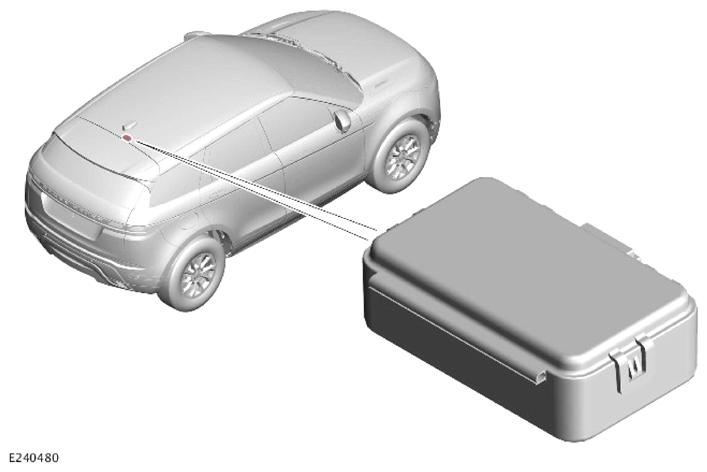

The Remote Function Receiver is located in the rear headliner.
The Remote Function Receiver receives Radio Frequency (RF) signals from the smart key. When the Remote Function Receiver receives a signal from the smart key, it passes the signal to the Remote Function Actuator (RFA)
There are 2 types of Remote Function Receiver available as detailed in the table below.
| PART NUMBER SUFFIX | OPERATING FREQUENCY | VEHICLE SPECIFICATION |
|---|---|---|
| A# | 315 MHz | North American Specification (NAS), Japan and Korea |
| B# | 433 MHz | Europe and Rest of World (ROW) |
