Anti-Theft - Active (G2318696)

COMPONENT TORQUE LOCATION

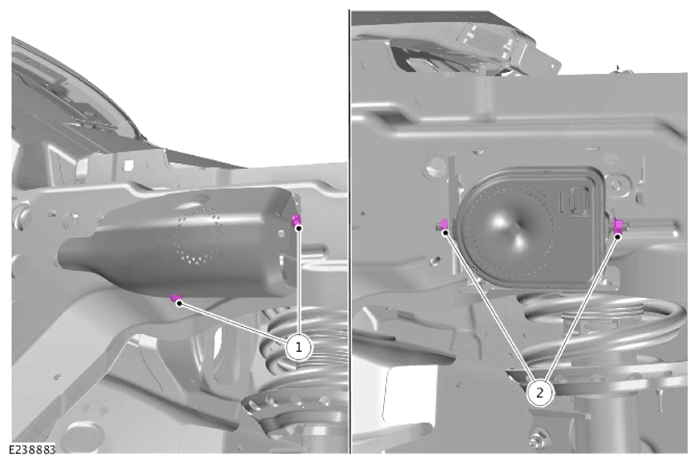

G14456481Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

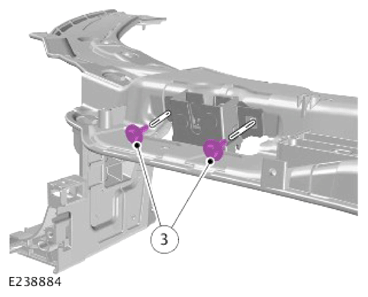

G14456482Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
TORQUE SPECIFICATION

  DESCRIPTION NM LB-FT LB-IN
1 Battery Back-Up Sounder (BBUS) shield bolts 7 - 62
2 BBUS nuts 7 - 62
3 Hood latch bolts 10 7 -
