Parking Aid Module (G2309450): Removal
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT .
- Remove the right loadspace side trim panel.
Refer to: RIGHT LOADSPACE SIDE TRIM PANEL .

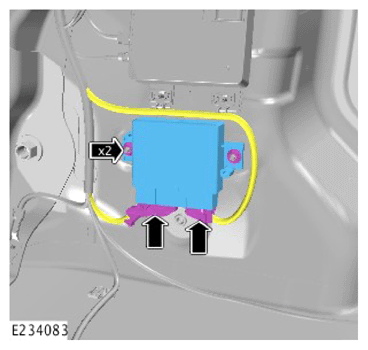

- Remove the 2 nuts.
- Disconnect the 2 electrical connectors.
- Remove the parking aid module.
