Front Proximity Camera (G2312400): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.
The ignition must be switched off.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Remove the front bumper.
Refer to: FRONT BUMPER .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

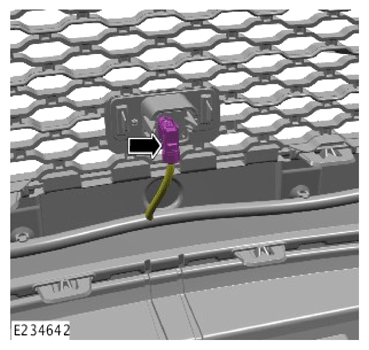

Disconnect the electrical connector.
NOTE: Note the orientation of the component prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

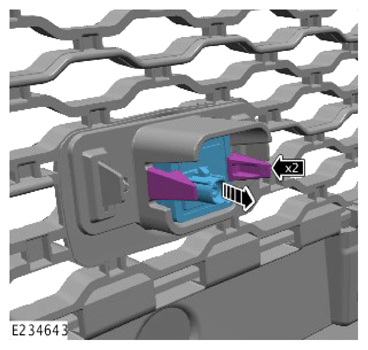

- Release the 2 clips.
- Remove the front proximity camera.
